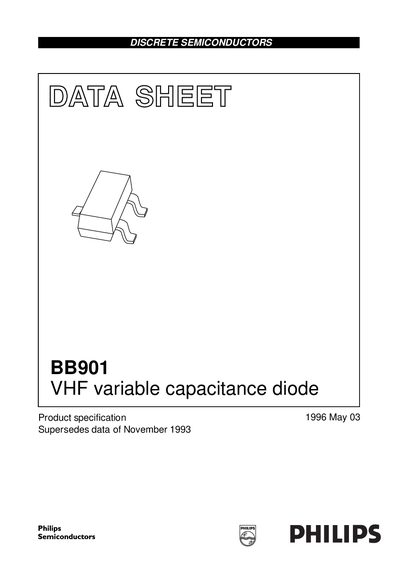

Philips BB901 VHF Variable Capacitance Diode Datasheet
The BB901 is a VHF variable capacitance diode fabricated with planar technology and encapsulated in a small plastic SOT23 surface‑mount package. It provides excellent linearity and a capacitance of about 1 pF with a ratio of 13.5, making it suitable for electronic tuning in satellite tuners, tunable coupling and VCO applications.
Electrical characteristics include a maximum continuous reverse voltage of 28 V, forward current up to 20 mA, storage temperature range from –55 °C to +150 °C, and operating junction temperature from –55 °C to +125 °C. Typical reverse current is 10 nA at 28 V (25 °C) and 200 nA at 28 V (85 °C). The diode series resistance is about 3 Ω at 100 MHz, and the capacitance varies with reverse voltage as shown in the graphical data.
Philips BB901 specifications
| Maximum reverse voltage (Ve) | 28 V |
|---|---|
| Storage temperature range (Tstg) | -55 °C to +150 °C |
| Operating junction temperature (Tj) | -55 °C to +125 °C |
| Capacitance ratio (C28) | 13.5 |
| Package type | SOT23 small plastic SMD |
| Marking code | S14 |
Source: Philips BB901 VHF Variable Capacitance Diode Datasheet
All Philips BB901 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum reverse voltage rating for the BB901 diode?
The BB901 can withstand a continuous reverse voltage of up to 28 V.
From: Philips BB901 VHF Variable Capacitance Diode Datasheet
What are the storage temperature limits for the BB901?
The device can be stored from –55 °C up to +150 °C.
From: Philips BB901 VHF Variable Capacitance Diode Datasheet
What is the marking code for the BB901 diode?
The BB901 diode is marked with the code S14.
From: Philips BB901 VHF Variable Capacitance Diode Datasheet
What is the maximum reverse voltage rating of the BB901?
The diode can withstand a continuous reverse voltage of up to 28 V.
From: Philips BB901 VHF Variable Capacitance Diode Datasheet
