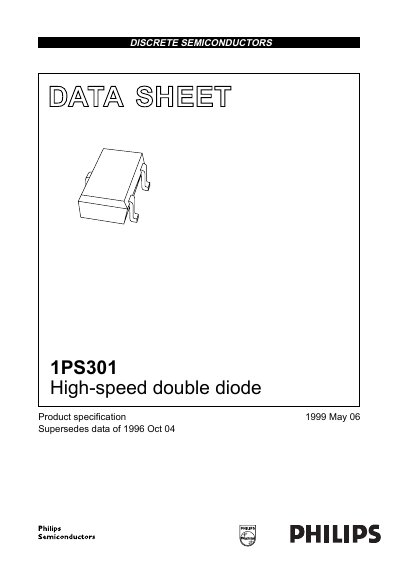

Philips 1PS301 High-Speed Double Diode Datasheet
Datasheet 8 pages · 58 KB · EN
The document describes the Philips 1PS301, a discrete semiconductor component consisting of two high-speed switching diodes with common cathodes. It is fabricated using planar technology and encapsulated in a very small rectangular plastic SMD SC70-3 (SOT323) package.
Read onlinePhilips 1PS301 specifications
| Reverse recovery time (trr) | 4 ns max. |
|---|---|
| Continuous reverse voltage | 80 V max. |
| Repetitive peak forward current (per diode) | 500 mA max. |
| Package type | SOT323 (SC70-3) |
All Philips 1PS301 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous reverse voltage for this diode?
The device supports a maximum continuous reverse voltage of 80 V.
How much total power can the device dissipate at 25°C?
The total power dissipation is rated at a maximum of 300 mW when the ambient temperature is 25°C.
What is the maximum repetitive peak forward current for a single diode?
The maximum repetitive peak forward current for a single diode is 500 mA.
What is the maximum total power dissipation at 25 °C?
The maximum total power dissipation is 300 mW at Tamb = 25 °C.
