Start here

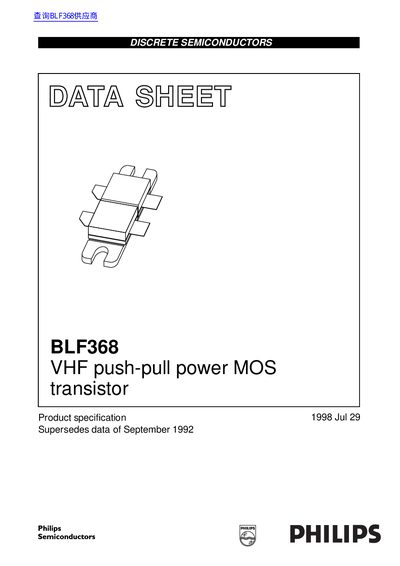

Philips BLF368 VHF Push-Pull Power MOS Transistor Datasheet
The Philips BLF368 is a dual push-pull silicon N-channel enhancement mode vertical D-MOS transistor designed for broadcast transmitter applications in the VHF frequency range. It features high power gain, easy power control, and good thermal stability, with gold metallization ensuring excellent reliability. The device is encapsulated in a 4-lead SOT262A1 balanced flange package with two ceramic caps.
Read onlinePhilips BLF368 specifications
| Drain-source voltage | 65 V |
|---|---|
| Drain current (DC) | 25 A |
| Total power dissipation | 500 W |
| Storage temperature | -65 to 150 °C |
| Junction temperature | 200 °C |
| Package type | 4-lead SOT262A1 balanced flange |
| Frequency range | VHF |
Source: Philips BLF368 VHF Push-Pull Power MOS Transistor Datasheet
All Philips BLF368 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the application of the BLF368 transistor?
It is designed for broadcast transmitter applications in the VHF frequency range.
From: Philips BLF368 VHF Push-Pull Power MOS Transistor Datasheet
What is the maximum drain-source voltage?
The maximum drain-source voltage is 65 V.
From: Philips BLF368 VHF Push-Pull Power MOS Transistor Datasheet
What safety precautions are required when handling the BLF368 transistor?
The device contains beryllium oxide and must not be damaged; it should be handled with anti‑static packaging and disposed as chemical or special waste according to local regulations.
From: Philips BLF368 VHF Push-Pull Power MOS Transistor Datasheet
What is the maximum drain current rating for the BLF368?
The maximum continuous drain current is 25 A.
From: Philips BLF368 VHF Push-Pull Power MOS Transistor Datasheet
