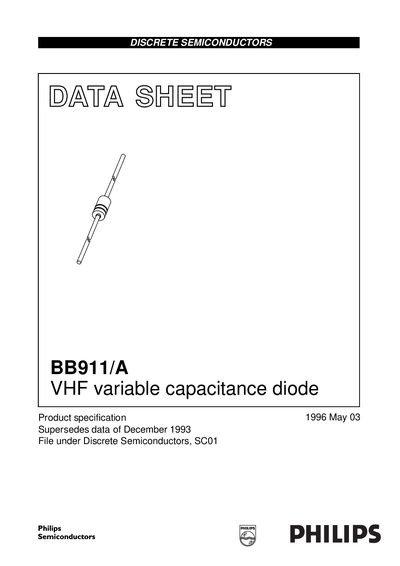

Philips BB911/A VHF Variable Capacitance Diode Data Sheet
The BB911/A is a VHF variable capacitance diode offered by Philips Semiconductors. It features high linearity, a hermetically sealed leaded glass SOD68 (DO‑34) package, and a capacitance ratio of 25. The device is intended for electronic tuning in VHF television tuners up to 160 MHz.
The data sheet provides electrical characteristics, limiting values, and graphical data such as capacitance versus reverse voltage and temperature coefficients. Package dimensions and identification markings are also described.
Philips BB911 specifications
| Maximum forward current | 20 mA |
|---|---|
| Storage temperature range | -55 °C to +150 °C |
| Operating junction temperature range | -55 °C to +100 °C |
| Capacitance ratio | 23.3 – 28.4 |
| Package type | SOD68 (DO‑34) hermetically sealed leaded glass |
Source: Philips BB911/A VHF Variable Capacitance Diode Data Sheet
All Philips BB911 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type of the BB911/A diode?
It uses a hermetically sealed leaded glass SOD68 (DO‑34) package.
From: Philips BB911/A VHF Variable Capacitance Diode Data Sheet
What temperature range can the device be stored at?
The storage temperature range is –55 °C to +150 °C.
From: Philips BB911/A VHF Variable Capacitance Diode Data Sheet
What is the maximum reverse voltage for the BB911/A diode?
The BB911/A diode can withstand a reverse voltage up to 30 V.
From: Philips BB911/A VHF Variable Capacitance Diode Datasheet
What package type does the BB911/A use?
It is supplied in a hermetically sealed leaded glass SOD68 (DO‑34) package.
From: Philips BB911/A VHF Variable Capacitance Diode Datasheet
