Key facts
- Brand
- Philips
- Model
- PDI1394P25
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-02
Start here

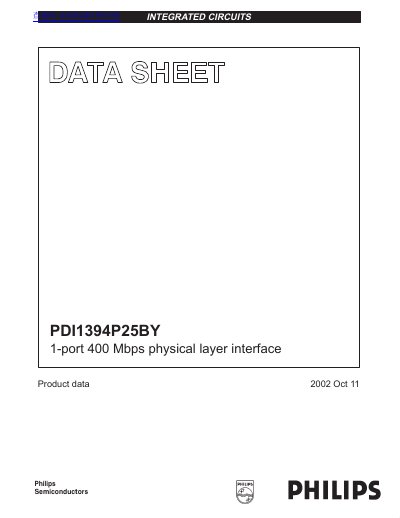

Philips PDI1394P25BY 1-port 400 Mbps Physical Layer Interface Datasheet
The Philips PDI1394P25BY is a 1-port 400 Mbps physical layer interface designed to implement a one-port node in a cable-based IEEE 1394-1995 and/or 1394a network. It provides fully compliant Firewire and i.LINK interoperability, supporting speeds of 100/200/400 Mbps with a single 3.3 volt supply.
Read onlinePhilips PDI1394P25 specifications
| Interface Standard | IEEE 1394-1995 and 1394a |
|---|---|
| Operating Speeds | 100/200/400 Mbps |
| Supply Voltage | 3.3 V |
| Package Type | 48-pin plastic LQFP |
| Operating Temperature | 0 °C to +70 °C |
Source: Philips PDI1394P25BY 1-port 400 Mbps Physical Layer Interface Datasheet
All Philips PDI1394P25 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum Vpp for end-of-wire power-consuming devices?
The minimum Vpp is 2.7 V.
From: Philips PDI1394P25BY 1-port 400 Mbps Physical Layer Interface Datasheet
Does the PDI1394P25BY require external filter capacitors for the PLL?
No, it does not require external filter capacitors for the PLL.
From: Philips PDI1394P25BY 1-port 400 Mbps Physical Layer Interface Datasheet
What standards does the PDI1394P25 support?
It fully supports the IEEE 1394-1995 Standard and the P1394a-2000 Standard.
From: Philips PDI1394P25 1-port 400 Mbps Physical Layer Interface Datasheet
Is the PDI1394P25 compatible with Firewire and i.LINK?
Yes, it is fully interoperable with Firewire and i.LINK implementations.
From: Philips PDI1394P25 1-port 400 Mbps Physical Layer Interface Datasheet
