Start here

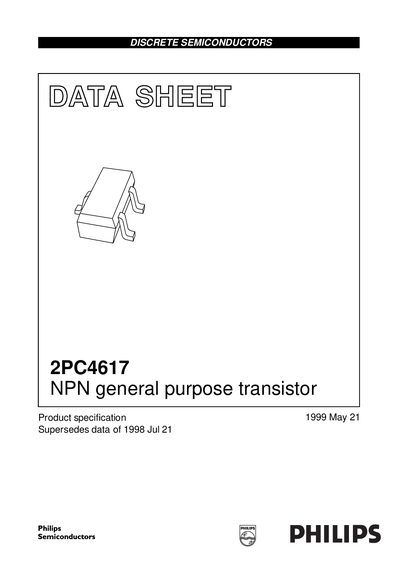

Philips 2PC4617 NPN General Purpose Transistor Datasheet
The document is a product specification sheet for the Philips 2PC4617, an NPN general-purpose transistor designed for low current (max. 100mA) and low voltage (max. 50V) applications. It is intended for use in communication, electronic data processing (EDP), and consumer applications as a switching or amplification component.
The datasheet details the device's pinning configuration within an SC-75 plastic package (SOT416), lists marking codes (Q, R, S), and provides comprehensive electrical characteristics including DC current gain ($h_{FE}$) ranges for different variants. It also includes thermal resistance data and a complete outline drawing with dimensions in millimeters.
Philips 2PC4617 specifications
| Collector current (DC) | 100 mA |
|---|---|
| Peak collector current | 200 mA |
| Collector-base voltage | 50 V |
| Total power dissipation | 150 mW |
| Thermal resistance (junction to ambient) | 833 K/W |
| DC current gain ($h_{FE}$) range | 120 - 560 |
Source: Philips 2PC4617 NPN General Purpose Transistor Datasheet
All Philips 2PC4617 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the package type for the 2PC4617?
The device is an NPN transistor in an SC-75 plastic package.
From: Philips 2PC4617 NPN General Purpose Transistor Datasheet
What are the applications for this transistor?
It is used for general purpose switching and amplification in communication, electronic data processing (EDP), and consumer applications.
From: Philips 2PC4617 NPN General Purpose Transistor Datasheet
What are the applications of the 2PC4617 transistor?
It is used for general purpose switching and amplification in communication, electronic data processing (EDP), and consumer applications.
From: Philips 2PC4617 NPN General Purpose Transistor Datasheet
What is the maximum collector current?
The maximum DC collector current is 100 mA, with a peak collector current of 200 mA.
From: Philips 2PC4617 NPN General Purpose Transistor Datasheet
