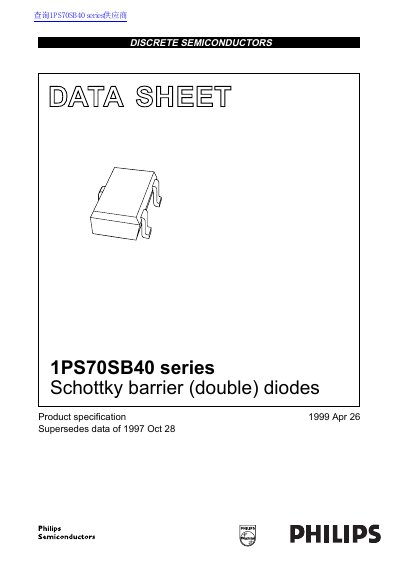

Philips 1PS70SB40 Series Schottky Barrier Diodes Datasheet
The document provides technical specifications for the Philips 1PS70SB40 series of Schottky barrier (double) diodes. These devices are designed for ultra high-speed switching, voltage clamping, protection circuits, and blocking diode applications. They feature low forward voltage, very small SMD packages (SC-70), and low diode capacitance.
Read onlinePhilips 1PS70SB40 specifications
| Continuous reverse voltage (Vr) | - 40 V |
|---|---|
| Continuous forward current (Ir) | - 120 mA |
| Repetitive peak forward current | - 120 mA |
| Non-repetitive peak forward current | - 200 mA |
| Storage temperature (Tstg) | -65 +150 [°C] |
| Junction temperature (Tj) | - 150 °C |
| Operating ambient temperature (Tamb) | -65 +150 [°C] |
| Diode capacitance (Cy) | 5 pF |
Source: Philips 1PS70SB40 Series Schottky Barrier Diodes Datasheet
All Philips 1PS70SB40 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous reverse voltage for these diodes?
The maximum continuous reverse voltage is 40 V.
From: Philips 1PS70SB40 Series Schottky Barrier Diodes Datasheet
What is the maximum continuous forward current rating?
The maximum continuous forward current is 120 mA.
From: Philips 1PS70SB40 Series Schottky Barrier Diodes Datasheet
What are the main applications for these diodes?
They are used for ultra high-speed switching, voltage clamping, protection circuits, and blocking diodes.
From: Philips 1PS70SB40 Series Schottky Barrier Diodes Datasheet
