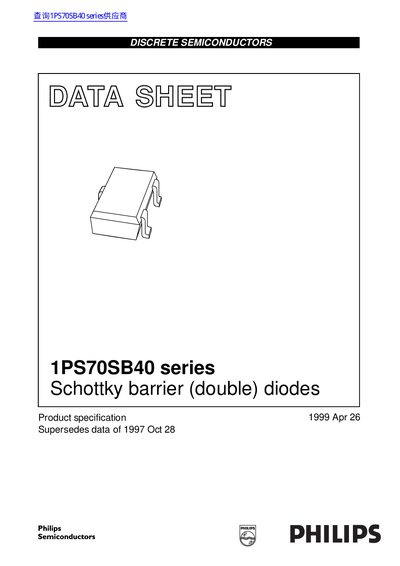

The 1PS70SB40 series of Schottky barrier (double) diodes feature low forward voltage, guard ring protection, very small SMD package and low diode capacitance. They are suitable for ultra high-speed switching, voltage clamping, protection circuits and blocking diodes etc.
The document describes the Philips 1PS70SB40 series, which consists of Schottky barrier diodes available in single and double configurations. These devices are encapsulated in a very small SMD package (SC-70) and are designed for applications requiring ultra high-speed switching, voltage clamping, and protection circuits.
| Continuous reverse voltage | 40 V |
|---|---|
| Continuous forward current | 120 mA |
| Repetitive peak forward current | 120 mA |
| Non-repetitive peak forward current | 200 mA |
| Storage temperature | -65 +150 [°C] |
| Junction temperature | 150 °C |
| Diode capacitance | 5 pF |
They are used for ultra high-speed switching, voltage clamping, protection circuits, and blocking diodes.
The device can handle a maximum continuous reverse voltage of 40 V.
Each diode supports a continuous forward current of up to 120 mA.
The device can be stored between -65 °C and +150 °C.
