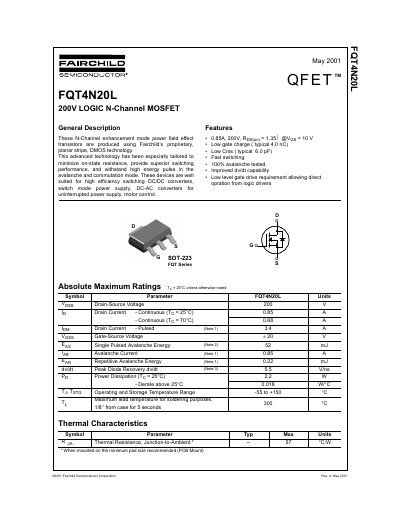

Fairchild FQT4N20L 200V Logic N-Channel MOSFET Datasheet
The FQT4N20L is an N-Channel enhancement mode power field effect transistor produced using Fairchild's proprietary planar stripe, DMOS technology. This advanced technology is tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in avalanche and commutation modes. The device is well-suited for high-efficiency switching DC/DC converters, switch-mode power supplies, DC-AC converters for uninterruptible power supply, and motor control applications.
Read onlineFairchild FQT4N20L specifications
| Drain-Source Voltage | 200 V |
|---|---|
| Continuous Drain Current (25°C) | 0.85 A |
| On-Resistance | 1.35 Ω |
| Gate Charge | 4.0 nC |
| Reverse Transfer Capacitance | 6.0 pF |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOT-223 |
Source: Fairchild FQT4N20L 200V Logic N-Channel MOSFET Datasheet
All Fairchild FQT4N20L documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current at 25°C is 0.85 A.
From: Fairchild FQT4N20L 200V Logic N-Channel MOSFET Datasheet
Is this MOSFET suitable for logic-level drive?
Yes, it has a low level gate drive requirement allowing direct operation from logic drivers.
From: Fairchild FQT4N20L 200V Logic N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage of the FQT4N20L?
The device is rated for a maximum drain‑source voltage of 200 V.
From: Fairchild FQT4N20L 200V Logic N-Channel MOSFET Datasheet
What is the typical gate charge of this MOSFET?
Its typical gate charge is 4.0 nC.
From: Fairchild FQT4N20L 200V Logic N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of 200 V.
From: Fairchild FQT4N20L 200V Logic N-Channel MOSFET Datasheet
What is the typical gate charge of the FQT4N20L?
The typical gate charge is about 4 nC.
