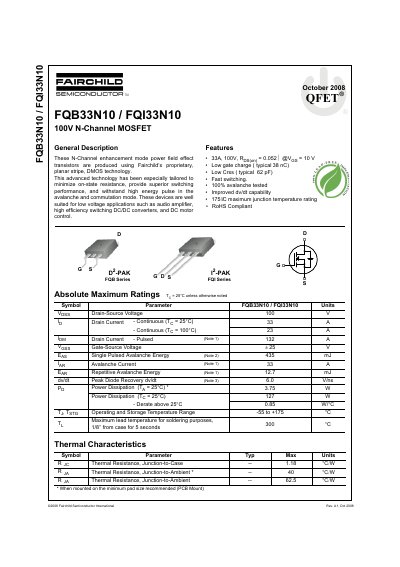

Fairchild FQB33N10/FQI33N10 100V N-Channel MOSFET Datasheet
The document describes the FQB33N10 and FQI33N10 as N-Channel enhancement mode power field effect transistors produced using Fairchild's proprietary planar stripe, DMOS technology. These devices are designed to minimize on-state resistance and provide superior switching performance, making them suitable for low voltage applications such as audio amplifiers, high efficiency switching DC/DC converters, and DC motor control. Key features include a 33A continuous drain current, 100V drain-source voltage rating, and RoHS compliance.
The datasheet details absolute maximum ratings, electrical characteristics including off and on characteristics, dynamic characteristics, and switching characteristics. It also presents typical characteristics through various graphs illustrating on-resistance, transfer characteristics, capacitance, and safe operating areas. Finally, the document includes package dimensions and land pattern recommendations for the D2-PAK and 2-PAK packages.
Fairchild FQI33N10 specifications
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 33 A |
| Maximum Junction Temperature | 175°C |
| Power Dissipation (Tc = 25°C) | 127 W |
| Operating and Storage Temperature Range | -55 to +175 °C |
Source: Fairchild FQB33N10/FQI33N10 100V N-Channel MOSFET Datasheet
All Fairchild FQI33N10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is this product RoHS compliant?
Yes, the product is RoHS Compliant.
From: Fairchild FQB33N10/FQI33N10 100V N-Channel MOSFET Datasheet
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175°C.
From: Fairchild FQB33N10/FQI33N10 100V N-Channel MOSFET Datasheet
What is the maximum operating and storage temperature range?
The device operates and stores within a temperature range of -55 to +175 °C.
From: Fairchild Semiconductor FQB33N10L/FQI33N10L 100V Logic N-Channel MOSFET Datasheet
