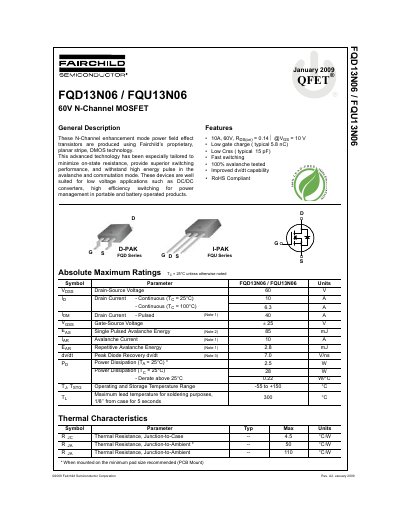

Fairchild Semiconductor FQD13N06/FQU13N06 60V N-Channel MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FQD13N06 and FQU13N06 N-Channel enhancement mode power field effect transistors. These devices utilize the company's proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. They are designed for low voltage applications such as DC/DC converters and power management in portable products.
Read onlineFairchild FQD13N06 specifications
| Drain-Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 10 A |
| Continuous Drain Current (Tj = 100°C) | 6.3 A |
| Pulsed Drain Current | 40 A |
| Gate-Source Voltage | -25 to +25 V |
| On-Resistance (Vgs = 10V, Id = 5.0A) | 0.11 to 0.14 Ohm |
| Total Gate Charge | 5.8 to 75 nC |
| Operating Temperature Range | -55 to +150 °C |
| Package Types | D-PAK, I-PAK |
Source: Fairchild Semiconductor FQD13N06/FQU13N06 60V N-Channel MOSFET Datasheet
All Fairchild FQD13N06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current at a junction temperature of 25°C is 10 A.
From: Fairchild Semiconductor FQD13N06/FQU13N06 60V N-Channel MOSFET Datasheet
What is the on-state resistance of the device?
The static drain-source on-resistance is typically between 0.11 and 0.14 Ohms when Vgs is 10V and Id is 5.0A.
From: Fairchild Semiconductor FQD13N06/FQU13N06 60V N-Channel MOSFET Datasheet
What is the maximum continuous drain current for this MOSFET at a case temperature of 25°C?
The device supports a continuous drain current of 11 A when the case temperature is 25°C.
From: Fairchild Semiconductor FQD13N06L / FQU13N06L 60V Logic N-Channel MOSFET Datasheet
What is the maximum junction temperature rating for these N-Channel MOSFETs?
The absolute maximum junction temperature rating is 175° C.
From: Fairchild Semiconductor FQD13N06L / FQU13N06L 60V Logic N-Channel MOSFET Datasheet
