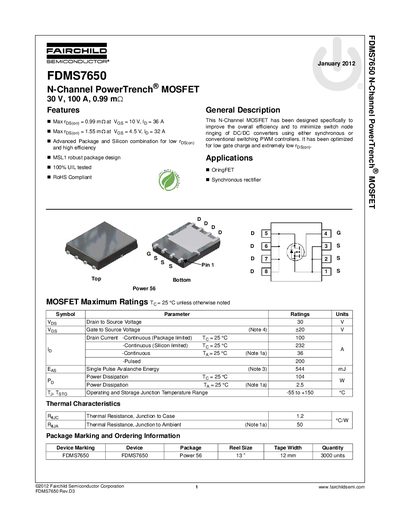

Fairchild FDMS7650 N-Channel MOSFET Datasheet
This document is a technical datasheet for the Fairchild Semiconductor FDMS7650, an N-Channel PowerTrench MOSFET. The device features a robust package design and is optimized for low gate charge and extremely low on-resistance to improve efficiency in synchronous or conventional switching PWM controllers.
Key specifications include a maximum drain-to-source voltage of 30V, continuous drain current up to 100A (package limited), and an on-resistance as low as 0.99 mΩ at Vgs = 10V. The datasheet provides detailed electrical characteristics, typical performance graphs, thermal data, and dimensional outlines for the Power56 package.
Fairchild FDMS7650 specifications
| Drain to Source Voltage (Vds) | 30 V |
|---|---|
| Continuous Drain Current (Package limited) | 100 A |
| Continuous Drain Current (Silicon limited) | 36 A |
| On Resistance (Vgs = 10 V, Id = 36 A) | 0.99 mΩ |
| Package Type | Power56 |
