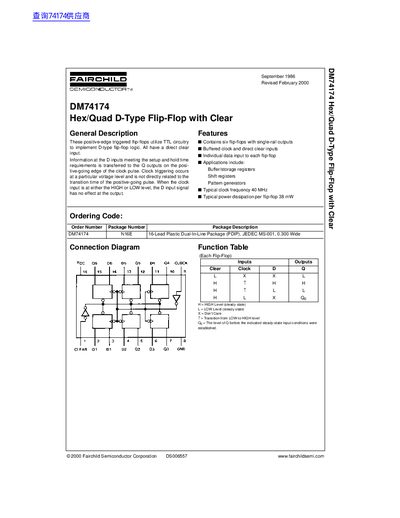

Fairchild DM74174 Hex/Quad D-Type Flip-Flop with Clear Datasheet
This document is a technical datasheet for the Fairchild Semiconductor DM74174 integrated circuit. It describes a positive-edge triggered flip-flop utilizing TTL circuitry that features single-rail outputs, buffered clock inputs, and direct clear inputs. The device contains six flip-flops suitable for applications such as buffer/storage registers, shift registers, and pattern generators.
Read onlineFairchild DM7417 specifications
| Number of Flip-Flops | Six |
|---|---|
| Typical Clock Frequency | 40 MHz |
| Typical Power Dissipation per Flip-Flop | 38 mW |
| Package Description | 16-Lead Plastic Dual-In-Line Package (PDIP) |
| Maximum Clock Frequency | 30 MHz |
Source: Fairchild DM74174 Hex/Quad D-Type Flip-Flop with Clear Datasheet
All Fairchild DM7417 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does this device have a direct clear input?
Yes, all flip-flops in the DM74174 utilize TTL circuitry to implement D-type logic with a direct clear input.
From: Fairchild DM74174 Hex/Quad D-Type Flip-Flop with Clear Datasheet
What is the maximum clock frequency for the DM74174?
The maximum clock frequency is 40 MHz under typical conditions and 30 MHz under recommended operating conditions.
From: Fairchild DM74174 Hex/Quad D-Type Flip-Flop with Clear Datasheet
What type of outputs does the DM7417 have?
The device features high voltage open-collector outputs which require external pull-up resistors for proper logical operation.
From: Fairchild DM7417 Hex Buffers with High Voltage Open-Collector Outputs Datasheet
How many independent gates are in the DM7417?
This device contains six independent gates, each performing a buffer function.
From: Fairchild DM7417 Hex Buffers with High Voltage Open-Collector Outputs Datasheet
