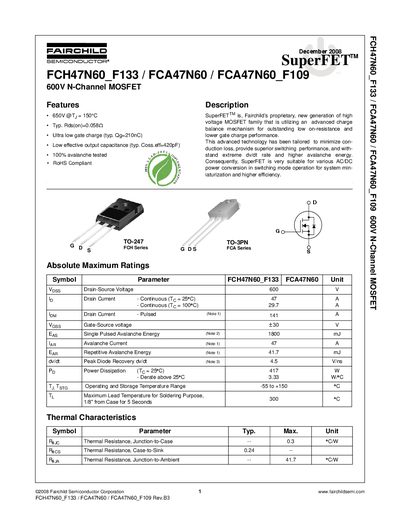

FAIRCHILD FCA47N60/FCA47N60_F109 Manual
Datasheet 9 pages · 1 MB · EN
This document is a datasheet for the Fairchild Semiconductor FCA47N60, a 600V N-Channel MOSFET utilizing the proprietary SuperFET technology. It is designed for AC/DC power conversion in switching mode operations to achieve system miniaturization and higher efficiency. The device features a typical on-resistance of 0.058Ω and is available in TO-247 and TO-3PN packages.
Read onlineFairchild FCA47N60F specifications
| Drain-Source Voltage | 600 V |
|---|---|
| Continuous Drain Current (Tj=25°C) | 47 A |
| Typical On-Resistance | 0.058 Ω |
| Typical Gate Charge | 210 nC |
| Operating Temperature Range | -55 to +150 °C |
All Fairchild FCA47N60F documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain-source voltage?
The maximum drain-source voltage is 600 V.
From: Fairchild Semiconductor FCA47N60F 600V N-Channel MOSFET Datasheet
What is the continuous drain current at 25°C?
The continuous drain current at 25°C is 47 A.
From: Fairchild Semiconductor FCA47N60F 600V N-Channel MOSFET Datasheet
