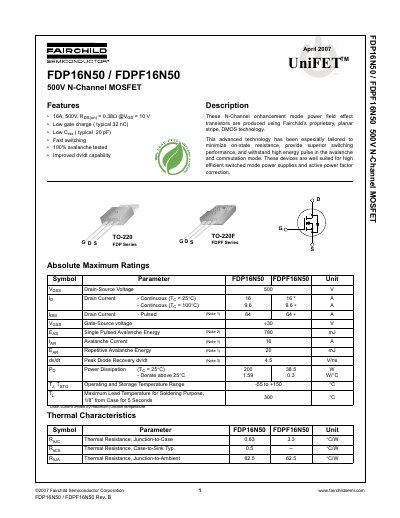

Fairchild FDP16N50/FDPF16N50 500V N-Channel MOSFET Datasheet
The document details the FDP16N50 and FDPF16N50 N-Channel enhancement mode power field effect transistors produced using Fairchild's proprietary planar stripe DMOS technology. These devices are designed for high efficiency switched mode power supplies and active power factor correction applications, featuring a 16A continuous drain current and low on-state resistance.
Read onlineFairchild FDP16N50 specifications
| Drain-Source Voltage | 500 V |
|---|---|
| On-Resistance | 0.38 Ω |
| Gate Charge (Typical) | 32 nC |
| Reverse Transfer Capacitance | 20 pF |
| Operating Temperature Range | -55 to +150 °C |
Source: Fairchild FDP16N50/FDPF16N50 500V N-Channel MOSFET Datasheet
All Fairchild FDP16N50 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on-state resistance?
The typical on-state resistance is 0.38 Ω at VGS = 10 V.
From: Fairchild FDP16N50/FDPF16N50 500V N-Channel MOSFET Datasheet
What is the operating temperature range?
The device operates and stores between -55 and +150 °C.
From: Fairchild FDP16N50/FDPF16N50 500V N-Channel MOSFET Datasheet
What is the typical on-state resistance of this MOSFET?
The typical RDS(on) is 0.37 Ω at VGS = 10V and ID = 7.5A.
From: Fairchild FDP16N50U/FDPF16N50UT N-Channel MOSFET Datasheet
Is this device RoHS compliant?
Yes, the document states that these devices are RoHS compliant.
From: Fairchild FDP16N50U/FDPF16N50UT N-Channel MOSFET Datasheet
