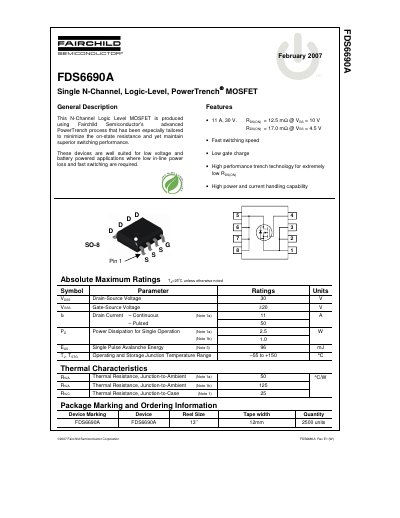

Fairchild FDS6690A Single N-Channel Logic-Level PowerTrench MOSFET Datasheet
This document is a technical datasheet for the Fairchild Semiconductor FDS6690A, an N-Channel Logic Level MOSFET produced using the advanced PowerTrench process. The device is designed to minimize on-state resistance while maintaining superior switching performance, making it suitable for low voltage and battery-powered applications requiring fast switching and low in-line power loss.
The datasheet provides comprehensive specifications including absolute maximum ratings, electrical characteristics such as drain-source breakdown voltage (30V) and continuous drain current (11A), and thermal data. It also includes typical characteristic curves illustrating on-resistance variation with temperature and gate voltage, capacitance characteristics, and safe operating areas.
Fairchild FDS6690A specifications
| Drain-Source Voltage | 30 V |
|---|---|
| Continuous Drain Current | 11 A |
| On-Resistance @ Vgs=4.5V, Id=10A | 12.0 mΩ to 17.0 mΩ |
| Package Type | SO-8 |
Source: Fairchild FDS6690A Single N-Channel Logic-Level PowerTrench MOSFET Datasheet
All Fairchild FDS6690A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature?
The operating and storage junction temperature range is -55 to +150 °C.
From: Fairchild FDS6690A Single N-Channel Logic-Level PowerTrench MOSFET Datasheet
What is the thermal resistance from junction to ambient?
The thermal resistance, junction-to-ambient (Note 1a) is 50 °CW.
From: Fairchild FDS6690A Single N-Channel Logic-Level PowerTrench MOSFET Datasheet
What is the maximum continuous drain current for this device?
The maximum continuous drain current is 10 A.
From: Fairchild FDS6690AS 30V N-Channel PowerTrench SyncFET Datasheet
What is the maximum power dissipation for a single pulse operation?
The maximum power dissipation for single operation is 2.5 W.
From: Fairchild FDS6690AS 30V N-Channel PowerTrench SyncFET Datasheet
