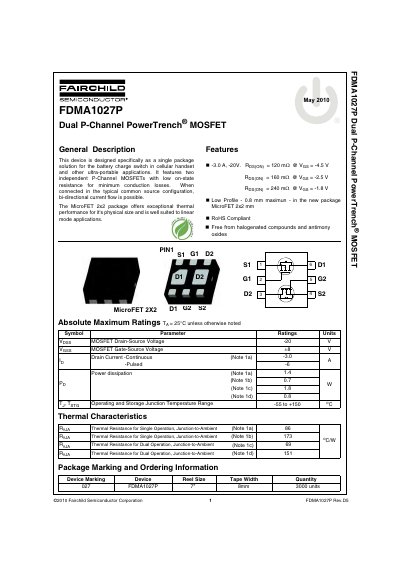

Fairchild Semiconductor FDMA1027P Dual P-Channel MOSFET Datasheet
The FDMA1027P is a dual P-Channel MOSFET designed specifically as a single package solution for battery charge switches in cellular handsets and other ultra-portable applications. It features two independent P-Channel MOSFETs with low on-state resistance to minimize conduction losses, allowing for bi-directional current flow when connected in a typical common source configuration.
The device utilizes the MicroFET 2x2 package, which offers exceptional thermal performance for its physical size and is well-suited to linear mode applications. The package has a low profile of 0.8 mm maximum and is RoHS compliant, being free from halogenated compounds and antimony oxides.
Fairchild FDMA1027P specifications
| Drain-Source Voltage | -20 V |
|---|---|
| Gate-Source Voltage | +8 V |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Profile | 0.8 mm maximum |
Source: Fairchild Semiconductor FDMA1027P Dual P-Channel MOSFET Datasheet
All Fairchild FDMA1027P documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for the FDMA1027P?
It is designed specifically as a single package solution for the battery charge switch in cellular handset and other ultra-portable applications.
From: Fairchild Semiconductor FDMA1027P Dual P-Channel MOSFET Datasheet
Is the FDMA1027P RoHS compliant?
Yes, the device is RoHS compliant and is free from halogenated compounds and antimony oxides.
From: Fairchild Semiconductor FDMA1027P Dual P-Channel MOSFET Datasheet
What are the main applications for this device?
The device is designed for battery management and load switch applications.
Is the FDMA1027PT RoHS compliant?
Yes, the device is RoHS Compliant and free from halogenated compounds and antimony oxides.
