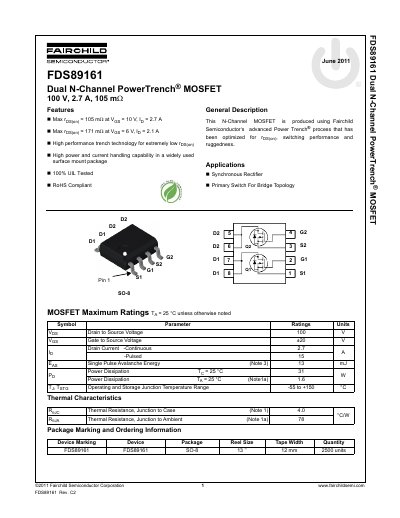

Fairchild FDS89161 N-Channel MOSFET Datasheet
This document is a technical datasheet for the Fairchild Semiconductor FDS89161, a dual N-Channel PowerTrench MOSFET designed for high performance and ruggedness. The device features extremely low on-resistance (Rds(on)) utilizing advanced trench technology.
The datasheet provides comprehensive electrical characteristics, including maximum ratings, off and on characteristics, dynamic parameters such as capacitance and gate charge, and switching times. It also includes typical characteristic curves illustrating on-region behavior, transfer characteristics, and thermal response under various conditions.
Fairchild FDS89161 specifications
| Drain to Source Voltage (Vdss) | 100 V |
|---|---|
| Continuous Drain Current (Id) | 2.7 A |
| Power Dissipation (Ta = 25°C) | 31 W |
| Static Drain to Source On Resistance (Vgs=10V, Id=2.7A) | 105 mΩ |
All Fairchild FDS89161 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for this MOSFET?
It is suitable for use as a synchronous rectifier or as a primary switch in bridge topology circuits.
Is the FDS89161 RoHS compliant?
Yes, the device is stated to be RoHS Compliant.
What is the maximum continuous drain current for this MOSFET?
The maximum continuous drain current is 2.7 A.
From: Fairchild FDS89161LZ Dual N-Channel PowerTrench MOSFET Datasheet
What is the operating and storage junction temperature range?
The operating and storage junction temperature range is -55 to +150 °C.
From: Fairchild FDS89161LZ Dual N-Channel PowerTrench MOSFET Datasheet
