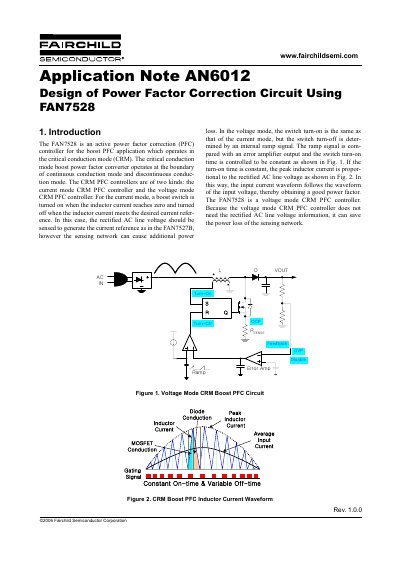

FAIRCHILD AN6012 Manual
The document describes the FAN7528, an active power factor correction (PFC) controller designed for boost PFC applications operating in critical conduction mode (CRM). It operates in voltage mode, eliminating the need for a rectified AC line voltage sensing network to save power. The controller features a dual output control function that adjusts the internal reference voltage based on the AC line voltage range (100Vac or 220Vac) without direct sensing, optimizing output voltage for low and high line conditions.
Read onlineFairchild FAN7528 specifications
| Operating Mode | Critical Conduction Mode (CRM) |
|---|---|
| Control Mode | Voltage Mode |
| Low Line Reference Voltage | 1.5V |
| High Line Reference Voltage | 2.5V |
| Output Voltage (Low Line) | 240V |
| OVP Voltage (High Line) | 426V |
| Drive Output Peak Current | 400mA |
| Drive Output Rise/Fall Time | 50ns |
| OCP Threshold | 0.8V |
Source: FAIRCHILD AN6012 Manual
All Fairchild FAN7528 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the operating mode of the FAN7528?
The FAN7528 operates in the critical conduction mode (CRM).
From: FAIRCHILD AN6012 Manual
Does the FAN7528 require sensing the rectified AC line voltage?
No, the voltage mode CRM PFC controller does not need the rectified AC line voltage information.
From: FAIRCHILD AN6012 Manual
