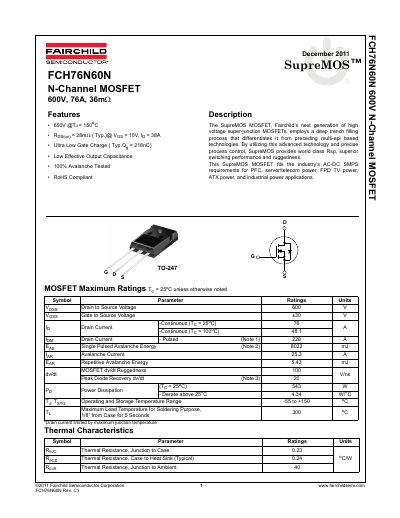

Fairchild FCH76N60N N-Channel MOSFET Datasheet
Datasheet 8 pages · 435 KB · EN
This document is a technical datasheet for the Fairchild Semiconductor FCH76N60N, an N-channel SupreMOS power MOSFET. The device utilizes deep trench filling technology to achieve superior on-resistance (Rds(on)) and switching performance suitable for AC-DC SMPS applications such as PFC, server/telecom power, and industrial power supplies.
Read onlineFairchild FCH76N60N specifications
| Continuous Drain Current (Tc = 25°C) | 76 A |
|---|---|
| Package Type | TO-247 |
| Total Gate Charge (Typical) | 218 nC |
All Fairchild FCH76N60N documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the operating and storage temperature ranges for this MOSFET?
The component can operate and be stored within a temperature range of -55 to +150 °C.
What are the applications for the FCH76N60NF?
The device fits industry requirements for AC-DC SMPS, PFC, server/telecom power, FPD TV power, ATX power, and industrial power applications.
Is the FCH76N60NF RoHS compliant?
Yes, the datasheet lists the device as RoHS Compliant.
