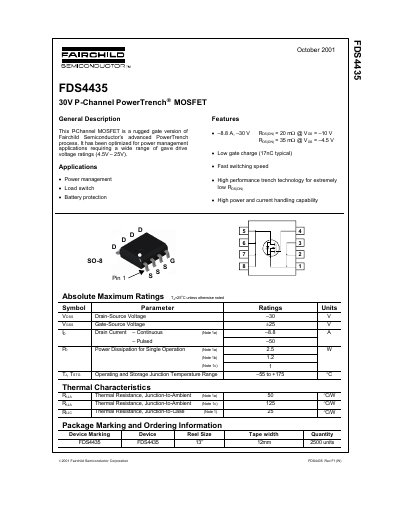

Fairchild FDS4435 P-Channel PowerTrench MOSFET Datasheet
The document describes the Fairchild FDS4435, a rugged gate version of the company's advanced PowerTrench process. It is specifically optimized for power management applications requiring a wide range of gate drive voltage ratings from 4.5V to 25V.
Key features include low on-resistance (RDS(ON)), low gate charge, fast switching speed, and high performance trench technology. The device is suitable for use in load switches and battery protection circuits.
Fairchild FDS4435 specifications
| Drain-Source Voltage (VDSS) | -30 V |
|---|---|
| Gate-Source Voltage (VGSS) | ±25 V |
| Continuous Drain Current (ID) | -8.8 A |
| On-Resistance at VGS = -10V | 20 mΩ |
| Operating Junction Temperature Range | -55 to +175 °C |
Source: Fairchild FDS4435 P-Channel PowerTrench MOSFET Datasheet
All Fairchild FDS4435 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current for this MOSFET?
The maximum continuous drain current is –8.8 A.
From: Fairchild FDS4435 P-Channel PowerTrench MOSFET Datasheet
What is the maximum drain-source voltage rating?
The maximum drain-source voltage is –30 V.
From: Fairchild FDS4435 P-Channel PowerTrench MOSFET Datasheet
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current is -8.8A at TA= 25°C.
From: Fairchild Semiconductor FDS4435BZ P-Channel PowerTrench MOSFET Datasheet
What is the operating and storage junction temperature range?
The operating and storage junction temperature range is -55 to +150 °C.
From: Fairchild Semiconductor FDS4435BZ P-Channel PowerTrench MOSFET Datasheet
