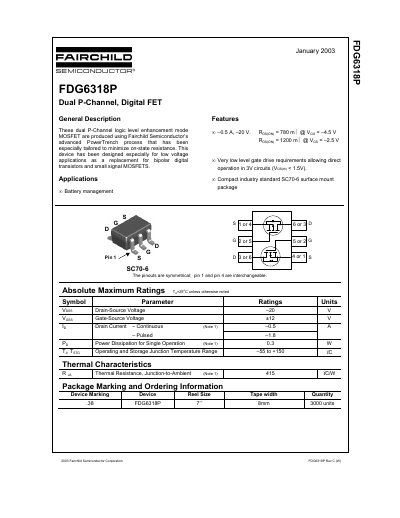

Fairchild FDG6318P Dual P-Channel Digital FET Datasheet
The Fairchild FDG6318P is a dual P-Channel logic level enhancement mode MOSFET produced using the PowerTrench process. It is specifically designed for low voltage applications as a replacement for bipolar digital transistors and small signal MOSFETs, featuring very low gate drive requirements allowing direct operation in 3V circuits.
The device is available in a compact industry standard SC70-6 surface mount package. Key electrical characteristics include a maximum continuous drain current of -0.5 A, a maximum drain-source voltage of -20 V, and a maximum power dissipation of 0.3 W for single operation. The pinouts are symmetrical, with pin 1 and pin 4 being interchangeable.
Fairchild FDG6318P specifications
| Drain-Source Voltage | -20 V |
|---|---|
| Gate-Source Voltage | +12 V |
| Drain Current (Continuous) | -0.5 A |
| Power Dissipation (Single) | 0.3 W |
| Operating Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction-to-Ambient) | 415 °C/W |
| Package Type | SC70-6 |
Source: Fairchild FDG6318P Dual P-Channel Digital FET Datasheet
All Fairchild FDG6318P documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current?
The maximum continuous drain current is -0.5 A.
From: Fairchild FDG6318P Dual P-Channel Digital FET Datasheet
Can the pinouts be swapped?
Yes, the pinouts are symmetrical; pin 1 and pin 4 are interchangeable.
From: Fairchild FDG6318P Dual P-Channel Digital FET Datasheet
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current is -0.5 A when the junction temperature is 25°C and V<sub>GS</sub> is -4.5V.
From: Fairchild FDG6318PZ Dual P-Channel Digital FET Datasheet
What are the gate drive requirements for this device?
The device has very low level gate drive requirements allowing direct operation in 3V circuits with V<sub>GG</sub>(TH) less than 1.5V.
From: Fairchild FDG6318PZ Dual P-Channel Digital FET Datasheet
