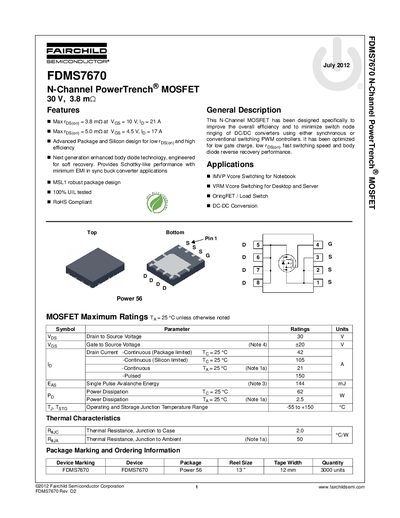

Fairchild Semiconductor FDMS7670 N-Channel PowerTrench MOSFET Datasheet

Datasheet 7 pages · 268 KB · EN

This document is a datasheet for the Fairchild Semiconductor FDMS7670, an N-Channel PowerTrench MOSFET designed for high efficiency and low on-resistance. It features advanced body diode technology engineered for soft recovery, making it suitable for synchronous buck converter applications to minimize EMI.

Read online

Fairchild FDMS7670 specifications

Drain to Source Voltage (VDS)	30 V
Continuous Drain Current (Package Limited)	42 A
Continuous Drain Current (Silicon Limited)	113 A
Power Dissipation (Tc=25°C)	65 W
Operating Junction Temperature Range	-55 to +150 °C
Thermal Resistance (Junction to Case)	1.9 C/W

Source: Fairchild FDMS7670AS N-Channel PowerTrench SyncFET Datasheet

All Fairchild FDMS7670 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What are the main applications for the FDMS7670?

The device is designed for IMVP Vcore Switching for Notebooks, VRM Vcore Switching for Desktop and Server, OringFET / Load Switch, and DC-DC Conversion.

From: Fairchild Semiconductor FDMS7670 N-Channel PowerTrench MOSFET Datasheet

Is the FDMS7670 RoHS compliant?

Yes, the document states that the device is RoHS Compliant.

From: Fairchild Semiconductor FDMS7670 N-Channel PowerTrench MOSFET Datasheet

What are the main applications for the FDMS7670AS?

It is designed for synchronous rectifiers in DC/DC converters, notebook Vcore/GPU low side switches, networking point of load low side switches, and telecom secondary side rectification.

From: Fairchild FDMS7670AS N-Channel PowerTrench SyncFET Datasheet

Does the FDMS7670AS include an external diode?

No, it features an efficient monolithic Schottky body diode integrated into the device.
