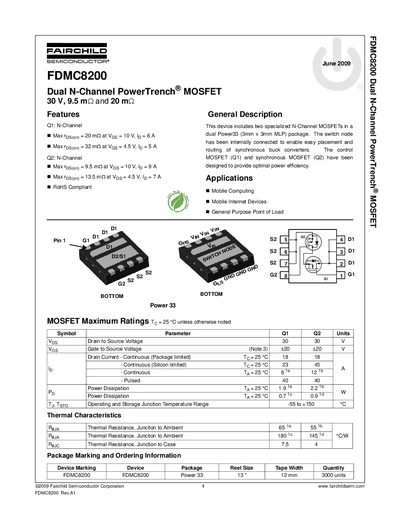

Fairchild Semiconductor FDMC8200 Dual N-Channel MOSFET Datasheet
The FDMC8200 is a dual N-Channel MOSFET device featuring two specialized transistors in a dual Power33 (3mm x 3mm MLP) package. The switch node is internally connected to facilitate the easy placement and routing of synchronous buck converters. The device includes a control MOSFET (Q1) and a synchronous MOSFET (Q2) optimized for power efficiency.
Read onlineFairchild FDMC8200 specifications
| Continuous Drain Current (Package limited) | 18 A (Q1), 18 A (Q2) |
|---|---|
| Continuous Drain Current (Silicon limited) | 23 A (Q1), 45 A (Q2) |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Ambient | 65/4 °C/W (Q1), 55/16 °C/W (Q2) |
| Package Type | Power 33 (3mm x 3mm MLP) |
Source: Fairchild Semiconductor FDMC8200 Dual N-Channel MOSFET Datasheet
All Fairchild FDMC8200 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the FDMC8200?
The device is designed for mobile computing, mobile internet devices, and general purpose point of load applications.
From: Fairchild Semiconductor FDMC8200 Dual N-Channel MOSFET Datasheet
What is the maximum continuous drain current for Q2?
The maximum continuous drain current for Q2 is 45 A when silicon limited at 25°C.
From: Fairchild Semiconductor FDMC8200 Dual N-Channel MOSFET Datasheet
What are the applications for this MOSFET?
The device is designed for Mobile Computing, Mobile Internet Devices, and General Purpose Point of Load applications.
From: Fairchild FDMC8200S Dual N-Channel PowerTrench MOSFET Datasheet
What package does the FDMC8200S use?
The device is available in a 3mm x 3mm MLP (Micro Leadframe) Power33 package.
From: Fairchild FDMC8200S Dual N-Channel PowerTrench MOSFET Datasheet
