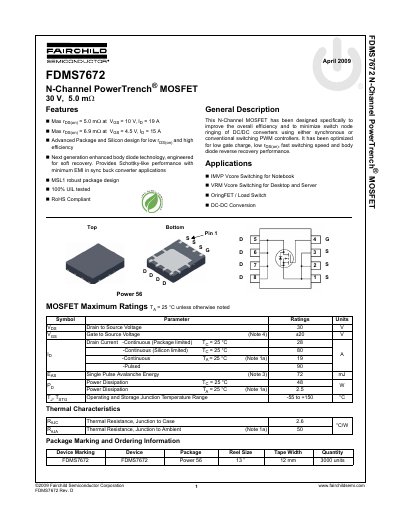

Fairchild Semiconductor FDMS7672 N-Channel MOSFET Datasheet
The FDMS7672 is an N-Channel PowerTrench MOSFET designed to improve efficiency and minimize switch node ringing in DC/DC converters, such as those used in notebook and desktop Vcore switching. It features advanced package and silicon design for low on-resistance and high-speed switching, along with next-generation enhanced body diode technology for soft recovery performance.
Read onlineFairchild FDMS7672 specifications
| Drain to Source Voltage | 30 V |
|---|---|
| Power Dissipation | 48 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case | 2.6 °C/W |
| Total Gate Charge (Vgs=9V to 10V) | 31 nC |
| Reverse Recovery Time | 26 ns |
Source: Fairchild Semiconductor FDMS7672 N-Channel MOSFET Datasheet
All Fairchild FDMS7672 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the FDMS7672?
It is designed for IMVP Vcore Switching for Notebook, VAM Vcore Switching for Desktop and Server, OringFET / Load Switch, and DC-DC Conversion.
From: Fairchild Semiconductor FDMS7672 N-Channel MOSFET Datasheet
Is the FDMS7672 RoHS compliant?
Yes, the device is RoHS Compliant.
From: Fairchild Semiconductor FDMS7672 N-Channel MOSFET Datasheet
