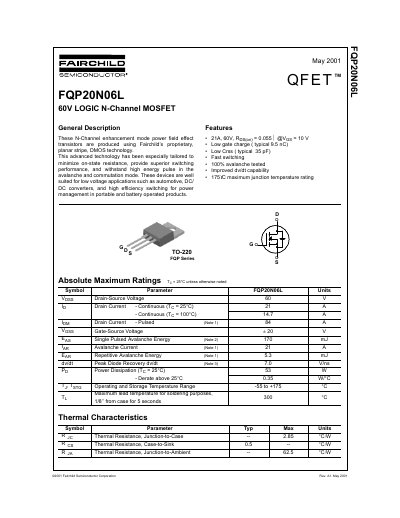

Fairchild FQP20N06L Logic N-Channel MOSFET Datasheet
This document is a technical datasheet for the Fairchild Semiconductor FQP20N06L, a 60V Logic N-Channel enhancement mode power field effect transistor. The device utilizes proprietary planar stripe DMOS technology to minimize on-state resistance and provide superior switching performance.
The datasheet details absolute maximum ratings, electrical characteristics, typical operating curves, and package dimensions for the TO-220 package. It is intended for low voltage applications such as automotive systems, DC/DC converters, and power management in portable products.
Fairchild FQP20N06 specifications
| Drain-Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 21 A |
| On-Resistance | 0.055 Ohms @ Vgs = 10V |
| Gate Charge (Typical) | 9.5 nC |
| Reverse Transfer Capacitance | 35 pF |
| Maximum Junction Temperature | 175°C |
Source: Fairchild FQP20N06L Logic N-Channel MOSFET Datasheet
All Fairchild FQP20N06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature rating for this MOSFET?
The maximum junction temperature rating is 175°C.
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175°C.
From: Fairchild Semiconductor FQP20N06 60V N-Channel MOSFET Datasheet
What is the continuous drain current at 25°C?
The continuous drain current is 20 A at a junction temperature of 25°C.
From: Fairchild Semiconductor FQP20N06 60V N-Channel MOSFET Datasheet
