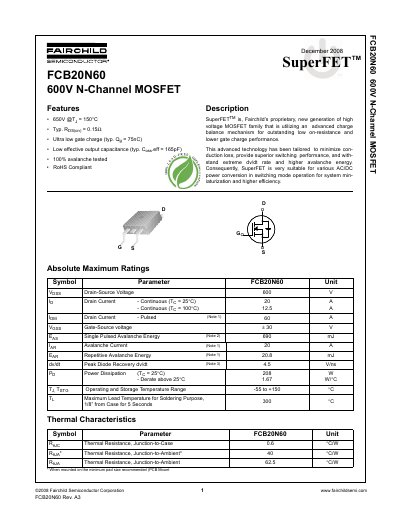

Fairchild Semiconductor FCB20N60 600V N-Channel MOSFET Datasheet
The document is a technical datasheet for the Fairchild Semiconductor FCB20N60, a 600V N-Channel MOSFET utilizing the company's proprietary SuperFET technology. It highlights features such as ultra-low on-resistance (typical 0.15Ω), low gate charge, and suitability for AC/DC power conversion applications. This manual is written in Chinese.
Read onlineFairchild FCB20N60 specifications
| Drain-Source Voltage | 600 V |
|---|---|
| Typical On-Resistance | 0.15 Ω |
| Typical Gate Charge | 75 nC |
| Typical Output Capacitance | 165 pF |
| Operating Temperature Range | -55 to +150 °C |
| Thermal Resistance Junction-to-Ambient | 62.5 °C/W |
Source: Fairchild Semiconductor FCB20N60 600V N-Channel MOSFET Datasheet
All Fairchild FCB20N60 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain-source voltage rating for the FCB20N60?
The device has a maximum drain-source voltage rating of 600 V.
From: Fairchild Semiconductor FCB20N60 600V N-Channel MOSFET Datasheet
What is the maximum junction temperature for this component?
The maximum operating junction temperature is 150 °C.
From: Fairchild Semiconductor FCB20N60 600V N-Channel MOSFET Datasheet
Is the FCB20N60F RoHS compliant?
Yes, the device is RoHS Compliant.
What is the operating temperature range?
The operating and storage temperature range is -55 to +150 °C.
