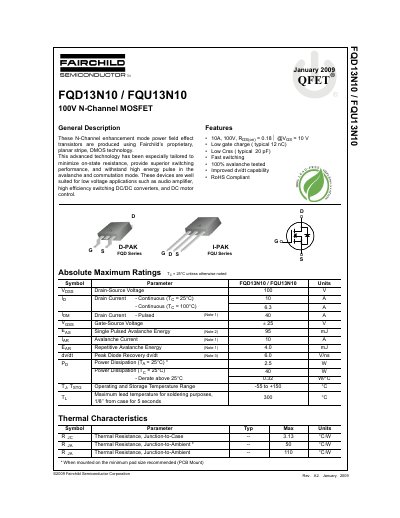

Fairchild Semiconductor FQD13N10/FQU13N10 N-Channel MOSFET Datasheet
The document describes the Fairchild FQD13N10 and FQU13N10 N-Channel enhancement mode power field effect transistors. These devices utilize Fairchild's proprietary planar stripe DMOS technology to minimize on-state resistance and provide superior switching performance. They are designed for low voltage applications such as audio amplifiers, high efficiency switching DC/DC converters, and DC motor control. This manual is written in Chinese.
Read onlineFairchild FQD13N10 specifications
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (25°C) | 10 A |
| On-Resistance | 0.18 Ω |
| Gate Charge (Typical) | 12 nC |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | TO-252 (DPAK) / I-PAK |
Source: Fairchild Semiconductor FQD13N10/FQU13N10 N-Channel MOSFET Datasheet
All Fairchild FQD13N10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current at a case temperature of 25°C?
The device supports a continuous drain current of 10 A when the case temperature is 25°C.
From: Fairchild Semiconductor FQD13N10/FQU13N10 N-Channel MOSFET Datasheet
What is the maximum single pulsed avalanche energy rating?
The FQD13N10 / FQU13N10 can withstand a single pulsed avalanche energy of 95 mJ.
From: Fairchild Semiconductor FQD13N10/FQU13N10 N-Channel MOSFET Datasheet
What is the maximum continuous drain current at a case temperature of 25°C?
The maximum continuous drain current is 10 A when the case temperature is 25°C.
From: Fairchild Semiconductor FQD13N10L/FQU13N10L 100V Logic N-Channel MOSFET Datasheet
What is the maximum power dissipation when the ambient temperature is 25°C?
The maximum power dissipation is 40 W when the ambient temperature is 25°C.
From: Fairchild Semiconductor FQD13N10L/FQU13N10L 100V Logic N-Channel MOSFET Datasheet
