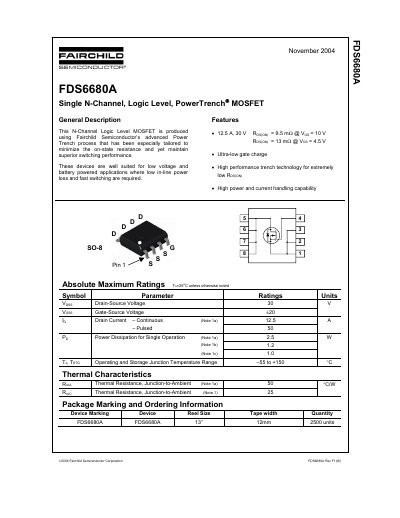

Fairchild FDS6680A Single N-Channel Logic Level PowerTrench MOSFET Datasheet
The document describes the Fairchild Semiconductor FDS6680A, a single N-Channel Logic Level PowerTrench MOSFET. It is designed using advanced PowerTrench process technology to minimize on-state resistance while maintaining superior switching performance for low voltage and battery-powered applications.
Key specifications include a drain-source breakdown voltage of 30V, a continuous drain current of 12.5A, and an ultra-low gate charge. The datasheet details absolute maximum ratings, electrical characteristics such as capacitance and transconductance, and typical performance graphs including on-resistance variation with temperature and gate charge characteristics.
Fairchild FDS6680A specifications
| Drain-Source Voltage (V_DSS) | 30 V |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Static Drain-Source On-Resistance (V_GS=10V) | 9.5 mΩ |
| Gate Threshold Voltage (Min) | 1 V |
Source: Fairchild FDS6680A Single N-Channel Logic Level PowerTrench MOSFET Datasheet
All Fairchild FDS6680A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current rating?
The device supports a continuous drain current of 12.5 A.
From: Fairchild FDS6680A Single N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the maximum operating junction temperature?
The operating and storage junction temperature range extends to +150 °C.
From: Fairchild FDS6680A Single N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the primary application of the FDS6680AS?
It is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC/DC power supplies.
From: Fairchild Semiconductor FDS6680AS 30V N-Channel PowerTrench SyncFET Datasheet
Does the FDS6680AS include an integrated diode?
Yes, it includes an integrated Schottky diode using Fairchild's monolithic SyncFET technology.
From: Fairchild Semiconductor FDS6680AS 30V N-Channel PowerTrench SyncFET Datasheet
