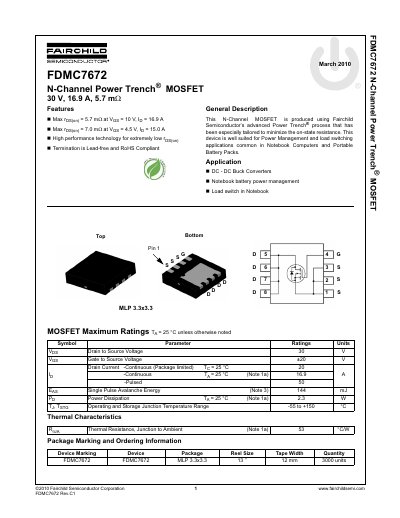

Fairchild FDMC7672 N-Channel Power Trench MOSFET Datasheet
This document is a technical datasheet for the Fairchild Semiconductor FDMC7672, an N-Channel Power Trench MOSFET. The device features a maximum drain current of 16.9A at Vgs=10V with an on-resistance (Rds(on)) of 5.7 mΩ. It is designed for use in DC-DC buck converters and notebook battery power management circuits.
Read onlineFairchild FDMC7672 specifications
| Drain to Source Voltage (Vdss) | 30 V |
|---|---|
| Continuous Drain Current (Id) | 16.9 A |
| On-Resistance (Rds(on)) @ Vgs=10V | 5.7 mΩ |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | MLP 3.3x3.3 |
Source: Fairchild FDMC7672 N-Channel Power Trench MOSFET Datasheet
All Fairchild FDMC7672 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications for this MOSFET?
The device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery Packs.
From: Fairchild FDMC7672 N-Channel Power Trench MOSFET Datasheet
Is the termination lead-free?
Yes, the termination is Lead-free and RoHS Compliant.
From: Fairchild FDMC7672 N-Channel Power Trench MOSFET Datasheet
What are the typical applications for the FDMC7672S?
The device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery packs.
From: Fairchild Semiconductor FDMC7672S N-Channel Power Trench SyncFET Datasheet
Is the FDMC7672S RoHS compliant?
Yes, the termination is lead-free and RoHS Compliant.
From: Fairchild Semiconductor FDMC7672S N-Channel Power Trench SyncFET Datasheet
