FAIRCHILD BC337-16/BC337-25 Manual

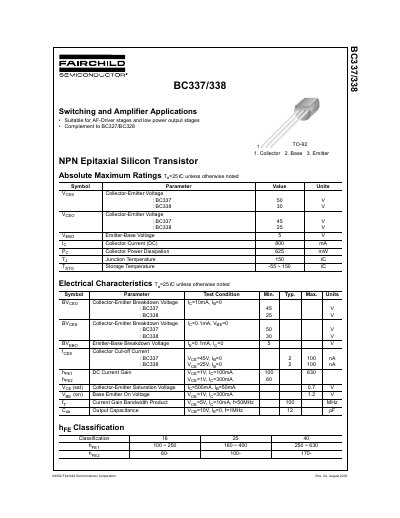

The document is a technical datasheet for the Fairchild Semiconductor BC337/338 series of NPN Epitaxial Silicon Transistors. It details the device's suitability for switching and amplifier applications, such as AF-driver stages and low power output stages. The text specifies that these transistors complement the BC327/BC328 series. This manual is written in Chinese.
Read onlineFairchild BC337 specifications
| Collector-Emitter Voltage (BC337) | 50 V |
|---|---|
| Collector-Emitter Voltage (BC338) | 30 V |
| Collector-Emitter Voltage (VCEO) | 45 V (BC337), 25 V (BC338) |
| Collector Current (DC) | 800 mA |
| Collector Power Dissipation | 625 mW |
| Junction Temperature | 150 °C |
| Storage Temperature | -55 ~ 150 °C |
| Current Gain Bandwidth Product | 100 MHz |
| Output Capacitance | 12 pF |
All Fairchild BC337 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the BC337/338 transistors?
They are suitable for AF-driver stages and low power output stages.
Which transistor series do the BC337/338 complement?
They complement the BC327/BC328 series.
Are these transistors suitable for life support devices?
No, Fairchild's products are not authorized for use as critical components in life support devices or systems without express written approval.
From: Fairchild Semiconductor BC337/BC338 NPN Transistor Datasheet
What is the maximum collector current for the BC337 transistor?
The maximum DC collector current is 800 mA.
From: Fairchild Semiconductor BC337/BC338 NPN Transistor Datasheet
