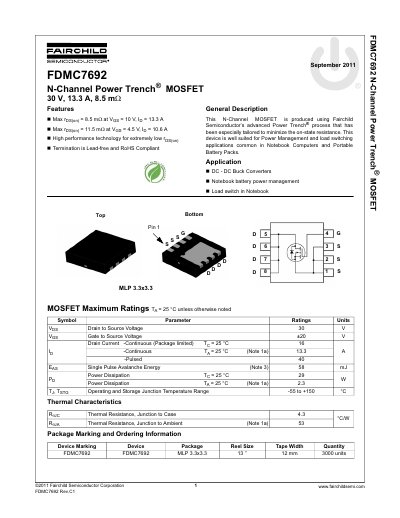

Fairchild Semiconductor FDMC7692 N-Channel Power Trench MOSFET Datasheet
The FDMC7692 is an N-Channel Power Trench MOSFET produced using Fairchild Semiconductor's advanced Power Trench process to minimize on-state resistance. It is designed for applications such as DC-DC buck converters and load switches in notebook computers and portable battery packs. The device features a lead-free and RoHS-compliant termination.
Read onlineFairchild FDMC7692 specifications
| Drain to Source Voltage | 30 V |
|---|---|
| Static Drain to Source On Resistance | 8.5 mΩ |
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | MLP 3.3x3.3 |
Source: Fairchild Semiconductor FDMC7692 N-Channel Power Trench MOSFET Datasheet
All Fairchild FDMC7692 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating and storage junction temperature range?
The operating and storage junction temperature range is from -55 to +150°C.
From: Fairchild Semiconductor FDMC7692 N-Channel Power Trench MOSFET Datasheet
What are the applications for the FDMC7692S?
The device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery packs.
From: Fairchild FDMC7692S N-Channel Power Trench MOSFET Datasheet
Is the FDMC7692S RoHS compliant?
Yes, the termination is Lead-free and RoHS Compliant.
From: Fairchild FDMC7692S N-Channel Power Trench MOSFET Datasheet
