Fairchild FDG327N Manuals

Key facts

Brand: Fairchild
Model: FDG327N
Category: Other Electronics
Documents: 2
Languages: EN
Last added: 2012-07-11

Start here

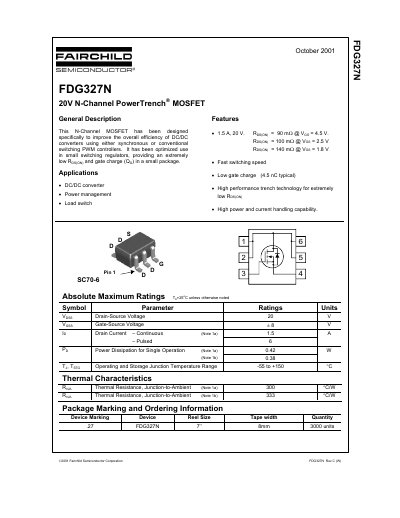

Fairchild FDG327N N-Channel PowerTrench MOSFET Datasheet

Datasheet 5 pages · 80 KB · EN

The document describes the Fairchild Semiconductor FDG327N, an N-Channel MOSFET optimized for use in small switching regulators. It features extremely low on-resistance (Ron) and gate charge (Qg), making it suitable for improving efficiency in DC/DC converters using synchronous or conventional switching PWM controllers.

Read online

Fairchild FDG327N specifications

Drain-Source Voltage	20 V
Gate-Source Voltage	+8 V
Continuous Drain Current	1.5 A
Pulsed Drain Current	6 A
Power Dissipation (Single Operation)	0.42 W
Operating Junction Temperature Range	-55 to +150 °C
Thermal Resistance (Junction-to-Ambient)	300 °C/W
Gate Charge (Typical)	4.5 nC

Source: Fairchild FDG327N N-Channel PowerTrench MOSFET Datasheet

All Fairchild FDG327N documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What are the main applications of this MOSFET?

It is designed for DC/DC converters, power management, and load switch applications.

From: Fairchild FDG327N N-Channel PowerTrench MOSFET Datasheet

Is this device suitable for life support systems?

No, Fairchild's products are not authorized for use as critical components in life support devices without express written approval.

From: Fairchild FDG327N N-Channel PowerTrench MOSFET Datasheet

What is the main application of the FDG327NZ?

It is designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

From: Fairchild Semiconductor FDG327NZ 20V N-Channel PowerTrench MOSFET Datasheet

What is the operating and storage junction temperature range?

The operating and storage junction temperature range is 55 to +150 °C.
