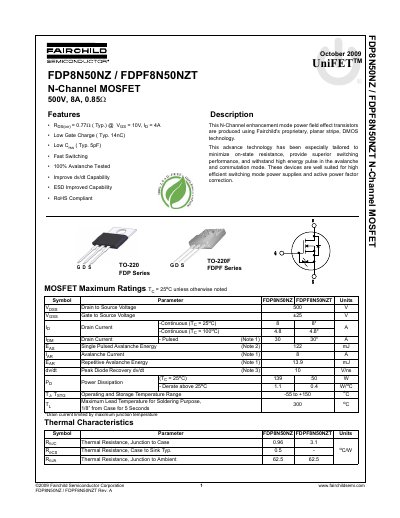

Fairchild FDP8N50NZ/FDPF8N50NZT N-Channel MOSFET Datasheet
This document is a technical datasheet for the Fairchild FDP8N50NZ and FDPF8N50NZT N-Channel enhancement mode power field effect transistors. These devices utilize Fairchild's proprietary planar stripe, DMOS technology and are designed for high efficient switching mode power supplies and active power factor correction applications.
The datasheet provides comprehensive electrical characteristics, including maximum ratings, off and on characteristics, dynamic parameters, and switching characteristics. It also includes typical performance characteristics graphs, test circuit diagrams, and mechanical dimensions for the TO-220 and TO-220F packages.
Fairchild FDP8N50NZF specifications
| Drain to Source Voltage | 500 V |
|---|---|
| Gate to Source Voltage | +25 V |
| Continuous Drain Current (25°C) | 8 A |
| Continuous Drain Current (100°C) | 48 A |
| Pulsed Drain Current | 30 A |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case | 0.96 °C/W |
| Thermal Resistance, Case to Sink | Typ. 0.5 °C/W |
| Thermal Resistance, Junction to Ambient | 62.5 °C/W |
| Input Capacitance | 565 pF |
| Output Capacitance | 80 pF |
| Total Gate Charge | 14 nC |
| Turn-On Delay Time | 17 ns |
| Turn-On Rise Time | 34 ns |
| Turn-Off Delay Time | 43 ns |
| Turn-Off Fall Time | 27 ns |
| Maximum Continuous Diode Forward Current | 8 A |
| Maximum Pulsed Diode Forward Current | 30 A |
| Diode Forward Voltage | 1.4 V |
| Reverse Recovery Time | 300 ns |
Source: Fairchild FDP8N50NZ/FDPF8N50NZT N-Channel MOSFET Datasheet
All Fairchild FDP8N50NZF documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain to source voltage?
The maximum drain to source voltage is 500 V.
From: Fairchild FDP8N50NZ/FDPF8N50NZT N-Channel MOSFET Datasheet
What is the continuous drain current at 25°C?
The continuous drain current at 25°C is 8 A.
From: Fairchild FDP8N50NZ/FDPF8N50NZT N-Channel MOSFET Datasheet
What is the maximum operating and storage temperature range?
The operating and storage temperature range is -55 to +150°C.
From: Fairchild FDP8N50NZF/FDPF8N50NZF N-Channel MOSFET Datasheet
Are these MOSFETs RoHS compliant?
Yes, the devices are stated as RoHS Compliant.
From: Fairchild FDP8N50NZF/FDPF8N50NZF N-Channel MOSFET Datasheet
