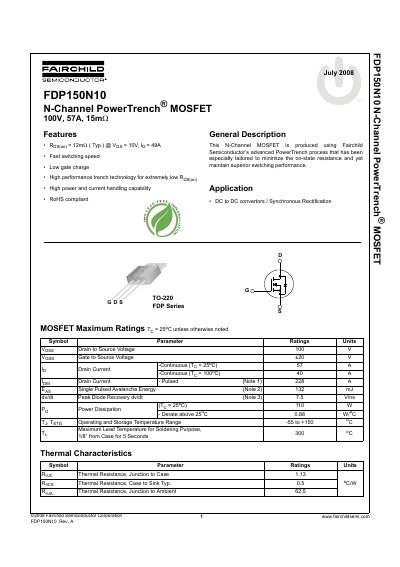

Fairchild FDP150N10 N-Channel PowerTrench MOSFET Datasheet
This document is a technical datasheet for the Fairchild Semiconductor FDP150N10, an N-Channel PowerTrench MOSFET. The device is designed with advanced trench technology to minimize on-state resistance while maintaining superior switching performance, making it suitable for DC-to-DC converters and synchronous rectification applications.
Read onlineFairchild FDP150N10 specifications
| Drain to Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 57 A |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | TO-220 |
Source: Fairchild FDP150N10 N-Channel PowerTrench MOSFET Datasheet
All Fairchild FDP150N10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for this MOSFET?
It is designed for use in DC to DC converters and synchronous rectification.
From: Fairchild FDP150N10 N-Channel PowerTrench MOSFET Datasheet
Is the FDP150N10 RoHS compliant?
Yes, the device is listed as RoHS compliant in the features section.
From: Fairchild FDP150N10 N-Channel PowerTrench MOSFET Datasheet
What are the typical applications for this MOSFET?
It is suitable for DC-DC converters, synchronous rectification in telecommunication PSUs, battery chargers, AC motor drives, and uninterruptible power supplies.
From: Fairchild FDP150N10A_F102 N-Channel PowerTrench MOSFET Datasheet
What is the package type?
The device is packaged in a TO-220 case.
From: Fairchild FDP150N10A_F102 N-Channel PowerTrench MOSFET Datasheet
