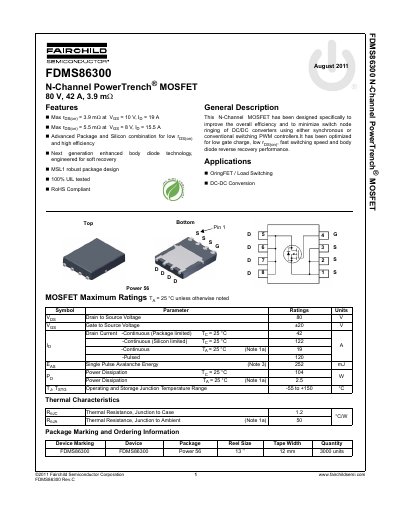

Fairchild Semiconductor FDMS86300 N-Channel PowerTrench MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FDMS86300, an N-Channel PowerTrench MOSFET. The device is designed to improve efficiency and minimize switch node ringing in DC/DC converters using synchronous or conventional switching PWM controllers. It features an advanced package and silicon combination for low on-resistance and high efficiency, along with a next-generation enhanced body diode engineered for soft recovery technology.
Read onlineFairchild FDMS86300 specifications
| Drain to Source Voltage | 80 V |
|---|---|
| Continuous Drain Current (Package limited) | 42 A |
| Continuous Drain Current (Silicon limited) | 122 A |
| Power Dissipation | 104 W |
| Junction to Case Thermal Resistance | 1.2 °C/W |
| Turn-On Delay Time | 31 ns |
| Total Gate Charge | 86 nC |
Source: Fairchild Semiconductor FDMS86300 N-Channel PowerTrench MOSFET Datasheet
All Fairchild FDMS86300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications of the FDMS86300?
The device is designed for OringFET / Load Switching and DC-DC Conversion.
From: Fairchild Semiconductor FDMS86300 N-Channel PowerTrench MOSFET Datasheet
What is the maximum junction temperature range?
The operating and storage junction temperature range is -55 to +150 °C.
From: Fairchild Semiconductor FDMS86300 N-Channel PowerTrench MOSFET Datasheet
What are the primary applications for this MOSFET?
It is designed for synchronous rectifiers in DC/DC converters, telecom secondary side rectification, and high-end server/workstation Vcore low-side applications.
From: Fairchild FDMS86300DC N-Channel Dual Cool Power Trench MOSFET Datasheet
Is this device RoHS compliant?
Yes, the datasheet explicitly states that the product is RoHS Compliant.
