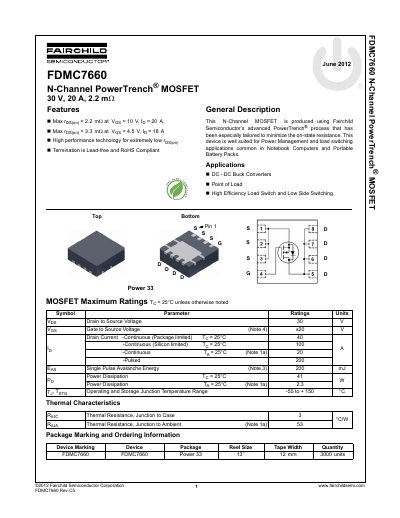

Fairchild Semiconductor FDMC7660 N-Channel PowerTrench MOSFET Datasheet
This document is a datasheet for the FDMC7660, an N-Channel PowerTrench MOSFET manufactured by Fairchild Semiconductor. The device is designed for power management and load switching applications, such as those found in notebook computers and portable battery packs. It utilizes the PowerTrench process to achieve extremely low on-state resistance.
Read onlineFairchild FDMC7660 specifications
| Drain to Source Voltage | 30 V |
|---|---|
| Gate to Source Voltage | ±20 V |
| Continuous Drain Current (Package limited) | 40 A |
| Continuous Drain Current (Silicon limited) | 100 A |
| Continuous Drain Current | 20 A |
| Pulsed Drain Current | 200 A |
| Power Dissipation | 41 W |
| Operating Junction Temperature Range | -55 to + 150 °C |
| Thermal Resistance, Junction to Case | 3 °C/W |
| Thermal Resistance, Junction to Ambient | 53 °C/W |
| Static Drain to Source On Resistance | 2.2 mΩ |
Source: Fairchild Semiconductor FDMC7660 N-Channel PowerTrench MOSFET Datasheet
All Fairchild FDMC7660 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the FDMC7660?
The device is well suited for Power Management and load switching applications common in Notebook Computers and Portable Battery Packs.
From: Fairchild Semiconductor FDMC7660 N-Channel PowerTrench MOSFET Datasheet
Is the FDMC7660 termination lead-free?
Yes, the termination is Lead-free and RoHS Compliant.
From: Fairchild Semiconductor FDMC7660 N-Channel PowerTrench MOSFET Datasheet
Is the FDMC7660DC RoHS compliant?
Yes, the document lists the device as RoHS Compliant.
From: Fairchild Semiconductor FDMC7660DC N-Channel Dual Cool PowerTrench MOSFET Datasheet
What is the maximum continuous drain current?
The maximum continuous drain current is 40 A when package limited at 25°C.
From: Fairchild Semiconductor FDMC7660DC N-Channel Dual Cool PowerTrench MOSFET Datasheet
What are the typical applications for the FDMC7660S?
The device is designed for synchronous rectification in DC/DC converters, notebook Vcore/GPU low side switching, networking point of load low side switching, and telecom secondary side rectification.
From: Fairchild Semiconductor FDMC7660S N-Channel Power Trench SyncFET Datasheet
Is the FDMC7660S RoHS compliant?
Yes, the termination is lead-free and RoHS Compliant.
From: Fairchild Semiconductor FDMC7660S N-Channel Power Trench SyncFET Datasheet
