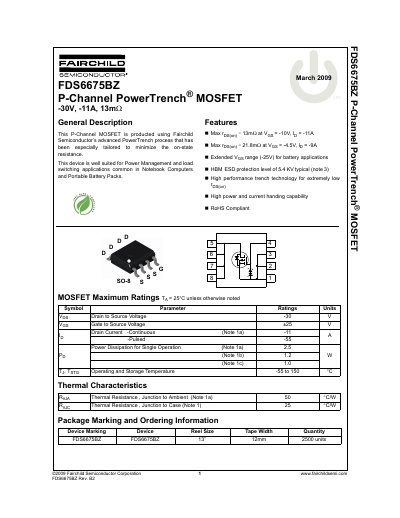

Fairchild Semiconductor FDS6675BZ P-Channel MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FDS6675BZ, a P-Channel PowerTrench MOSFET designed for power management and load switching applications. The device features a maximum drain-to-source voltage of -30V and a continuous drain current of -11A.
Read onlineFairchild FDS6675 specifications
| Drain to Source Voltage | -30 V |
|---|---|
| Gate to Source Voltage | ±25 V |
| Continuous Drain Current | -11A |
| Operating Temperature | -55 to 150 °C |
| Drain to Source On Resistance | 13m Ω |
Source: Fairchild Semiconductor FDS6675BZ P-Channel MOSFET Datasheet
All Fairchild FDS6675 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain current?
The maximum continuous drain current is -11A.
From: Fairchild Semiconductor FDS6675BZ P-Channel MOSFET Datasheet
What is the operating temperature range?
The device operates and stores between -55°C and 150°C.
From: Fairchild Semiconductor FDS6675BZ P-Channel MOSFET Datasheet
What are the typical applications for this MOSFET?
It is well suited for notebook computer applications including load switching, power management, and battery charging circuits.
From: Fairchild Semiconductor FDS6675 P-Channel MOSFET Datasheet
What is the maximum operating temperature?
The operating and storage temperature range is from -55 to 150 °C.
From: Fairchild Semiconductor FDS6675 P-Channel MOSFET Datasheet
