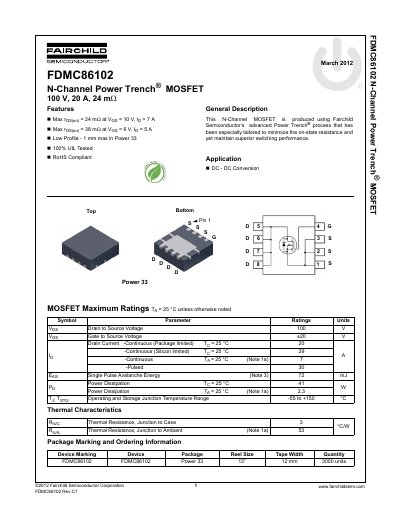

Fairchild Semiconductor FDMC86102 N-Channel Power Trench MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FDMC86102, an N-Channel Power Trench MOSFET. The device is designed for DC-DC conversion applications and features a maximum on-state resistance of 24 mΩ. It operates with a drain-to-source voltage rating of 100V and a continuous drain current of 20A.
Read onlineFairchild FDMC86102 specifications
| Drain to Source Voltage (Vdss) | 100 V |
|---|---|
| Continuous Drain Current (Package limited) | 18 A |
| Static Drain to Source On Resistance | 23 mΩ |
| Power Dissipation (Ta = 25 °C) | 41 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
Source: Fairchild FDMC86102L N-Channel Power Trench MOSFET Datasheet
All Fairchild FDMC86102 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for this MOSFET?
The document lists DC-DC Conversion as the application.
From: Fairchild Semiconductor FDMC86102 N-Channel Power Trench MOSFET Datasheet
What is the maximum continuous drain current for this MOSFET at 25°C?
The maximum continuous drain current is 20 A when the temperature is 25°C.
From: Fairchild Semiconductor FDMC86102 N-Channel Power Trench MOSFET Datasheet
What is the maximum continuous drain current for this MOSFET?
The device supports a maximum continuous drain current of 18 A when the case temperature is 25 °C.
From: Fairchild FDMC86102L N-Channel Power Trench MOSFET Datasheet
What is the maximum power dissipation at a junction temperature of 25 °C?
The maximum power dissipation is 41 W when the junction temperature is maintained at 25 °C.
From: Fairchild FDMC86102L N-Channel Power Trench MOSFET Datasheet
What is the primary application for this MOSFET?
The device is intended for DC-DC switching applications.
From: Fairchild Semiconductor FDMC86102LZ N-Channel MOSFET Datasheet
What is the maximum continuous drain current for this MOSFET at 25°C?
The maximum continuous drain current is 22 A when the temperature is 25°C.
From: Fairchild Semiconductor FDMC86102LZ N-Channel MOSFET Datasheet
