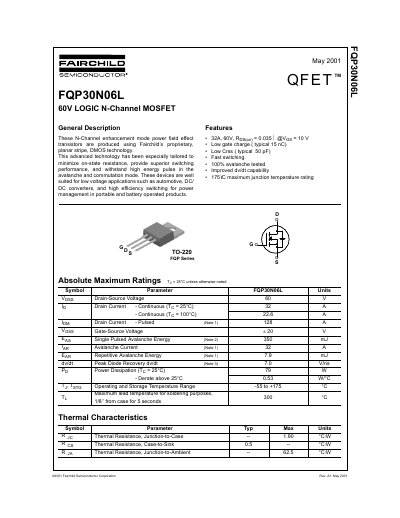

Fairchild Semiconductor FQP30N06L 60V Logic N-Channel MOSFET Datasheet
This document is a datasheet for the Fairchild FQP30N06L, a 60V Logic N-Channel MOSFET produced using Fairchild's proprietary planar stripe DMOS technology. The device is designed to minimize on-state resistance and provide superior switching performance, making it suitable for low voltage applications such as automotive systems, DC/DC converters, and portable battery-operated products.
Read onlineFairchild FQP30N06 specifications
| Drain-Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (25°C) | 32 A |
| On-Resistance | 0.035 Ω |
| Gate Charge | 15 nC |
| Reverse Transfer Capacitance | 50 pF |
| Maximum Junction Temperature | 175°C |
Source: Fairchild Semiconductor FQP30N06L 60V Logic N-Channel MOSFET Datasheet
All Fairchild FQP30N06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175°C.
From: Fairchild Semiconductor FQP30N06L 60V Logic N-Channel MOSFET Datasheet
Is the device avalanche tested?
Yes, the device is 100% avalanche tested.
From: Fairchild Semiconductor FQP30N06L 60V Logic N-Channel MOSFET Datasheet
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175 °C.
Is the device avalanche tested?
Yes, the device is 100% avalanche tested.
