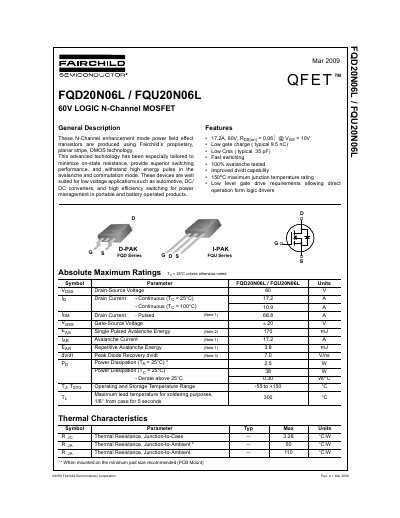

Fairchild Semiconductor FQD20N06L/FQU20N06L 60V Logic N-Channel MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FQD20N06L and FQU20N06L, which are 60V Logic N-Channel enhancement mode power field effect transistors. These devices utilize proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. They are well-suited for low voltage applications such as automotive systems, DC/DC converters, and high-efficiency switching for power management in portable products.
Read onlineFairchild FQD20N06 specifications
| Drain-Source Voltage | 60 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 17.2 A |
| Continuous Drain Current (Tj = 100°C) | 10.9 A |
| On-Resistance | 0.082 @ Vgs = 10V |
| Gate Charge (Typical) | 9.5 nC |
| Reverse Transfer Capacitance | 35 pF |
| Maximum Junction Temperature | 150°C |
| Power Dissipation (Tc = 25°C) | 38 W |
| Operating Temperature Range | -55 to +150 °C |
Source: Fairchild Semiconductor FQD20N06L/FQU20N06L 60V Logic N-Channel MOSFET Datasheet
All Fairchild FQD20N06 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical gate charge for the FQD20N06L?
The typical gate charge is 9.5 nC.
From: Fairchild Semiconductor FQD20N06L/FQU20N06L 60V Logic N-Channel MOSFET Datasheet
What is the maximum junction temperature rating?
The maximum junction temperature rating is 150°C.
From: Fairchild Semiconductor FQD20N06L/FQU20N06L 60V Logic N-Channel MOSFET Datasheet
What is the maximum operating and storage temperature range for this MOSFET?
The device operates and stores within a temperature range of -55 to +150 °C.
