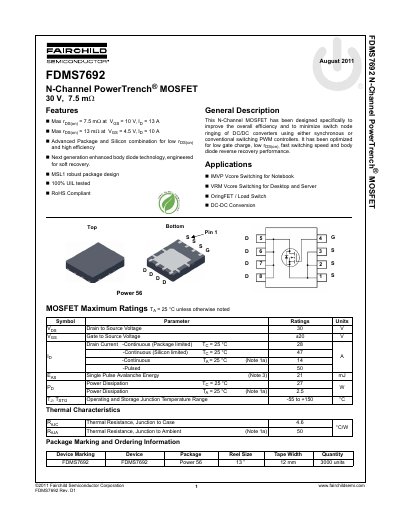

Fairchild Semiconductor FDMS7692 N-Channel PowerTrench MOSFET Datasheet
The document describes the Fairchild Semiconductor FDMS7692, an N-Channel PowerTrench MOSFET designed to improve efficiency and minimize switch node ringing in DC/DC converters. Key features include low on-resistance (rDS(on)), fast switching speed, and enhanced body diode technology for soft recovery.
Read onlineFairchild FDMS7692 specifications
| Drain to Source Voltage (VDS) | 30 V |
|---|---|
| Max rDS(on) at VGS = 10 V, ID = 13 A | 7.5 mΩ |
| Max rDS(on) at VGS = 4.5 V, ID = 10 A | 13 mΩ |
| Continuous Drain Current (Package limited) | 28 A |
| Operating Junction Temperature Range | -55 to +150 °C |
Source: Fairchild Semiconductor FDMS7692 N-Channel PowerTrench MOSFET Datasheet
All Fairchild FDMS7692 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for this MOSFET?
It is designed for IMVP Vcore switching, VRM Vcore switching, OringFET/Load Switch, and DC-DC conversion.
From: Fairchild Semiconductor FDMS7692 N-Channel PowerTrench MOSFET Datasheet
Is the device RoHS compliant?
Yes, the document states that the device is RoHS Compliant.
From: Fairchild Semiconductor FDMS7692 N-Channel PowerTrench MOSFET Datasheet
Is the FDMS7692A RoHS compliant?
Yes, the device is RoHS Compliant.
From: Fairchild Semiconductor FDMS7692A N-Channel PowerTrench MOSFET Datasheet
