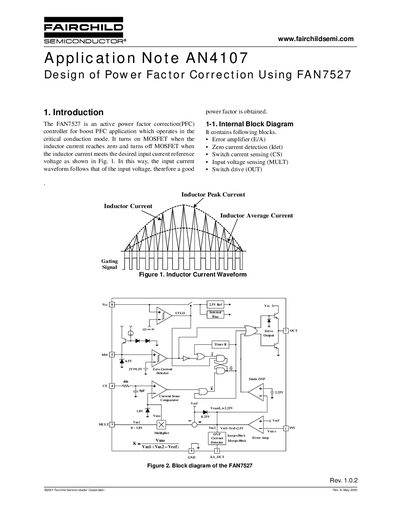

FAIRCHILD AN4107 Manual
The document provides an introduction to the FAN7527, an active power factor correction (PFC) controller designed for boost applications. It operates in critical conduction mode by turning on the MOSFET when inductor current reaches zero and turning it off based on a desired input current reference voltage.
Read onlineFairchild FAN7527 specifications
| Operating Mode | Critical conduction mode |
|---|---|
| Application Type | Boost PFC application |
| Error Amp Non-Inverting Bias | 2.5V |
| Soft OVP Threshold Current | 30uA |
| Dynamic OVP Threshold Current | 40uA |
| Quiescent Current during OVP | 2mA |
| Multiplier Input Range Pin 3 | 0V to 3.8V |
| Error Amp Output Voltage Range | 2.25V to 6V |
| Zero Current Detector Hysteresis | 0.5V |
| Watchdog Timer Delay | 500us |
| Drive Output Peak Current | 500mA |
