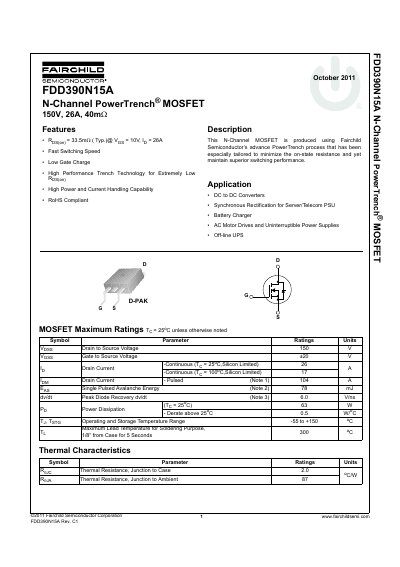

Fairchild FDD390N15A N-Channel MOSFET Datasheet
Datasheet 9 pages · 619 KB · EN
This document is a technical datasheet for the Fairchild Semiconductor FDD390N15A, an N-Channel PowerTrench MOSFET. The device features a maximum drain-to-source voltage of 150V and continuous drain current capabilities up to 26A at 25°C. It utilizes advanced trench technology to minimize on-state resistance while maintaining superior switching performance.
Read onlineFairchild FDD390N15A specifications
| Drain to Source Voltage (Vdss) | 150 V |
|---|---|
| Continuous Drain Current (Id) | 26 A |
| Power Dissipation (Ta = 25°C) | 8 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
All Fairchild FDD390N15A documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the operating and storage temperature ranges for this MOSFET?
The operating and storage temperature range is from -55 to +150 °C.
