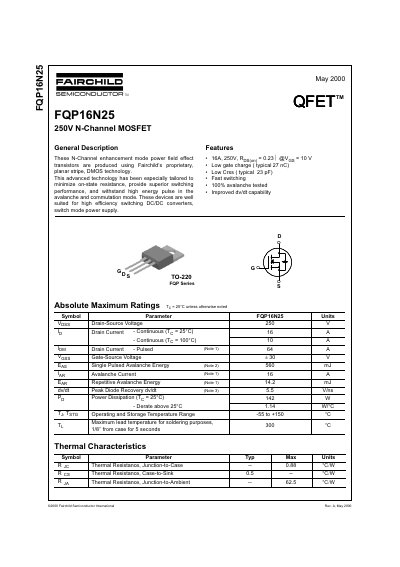

Fairchild Semiconductor FQP16N25 250V N-Channel MOSFET Datasheet
This document is a datasheet for the FQP16N25, an N-Channel enhancement mode power field effect transistor produced using Fairchild's proprietary planar stripe, DMOS technology. The device is optimized to minimize on-state resistance and provide superior switching performance, making it well-suited for high efficiency switching DC/DC converters and switch mode power supplies.
The datasheet provides absolute maximum ratings, electrical characteristics, and typical characteristics including graphs for on-resistance, capacitance, and switching times. It also includes test circuit diagrams for gate charge, resistive switching, and unclamped inductive switching, as well as package dimensions for the TO-220 package.
Fairchild FQP16N25 specifications
| Drain-Source Voltage | 250 V |
|---|---|
| Continuous Drain Current (25°C) | 16 A |
| Continuous Drain Current (100°C) | 10 A |
| Pulsed Drain Current | 64 A |
| Power Dissipation (25°C) | 142 W |
| Operating Temperature Range | -55 to +150 °C |
| Thermal Resistance (Junction-to-Case) | 0.88 °C/W |
| Static Drain-Source On-Resistance | 0.23 Ω |
| Package Type | TO-220 |
Source: Fairchild Semiconductor FQP16N25 250V N-Channel MOSFET Datasheet
All Fairchild FQP16N25 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain-source voltage?
The maximum drain-source voltage is 250 V.
From: Fairchild Semiconductor FQP16N25 250V N-Channel MOSFET Datasheet
What is the continuous drain current at 25°C?
The continuous drain current at 25°C is 16 A.
From: Fairchild Semiconductor FQP16N25 250V N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage rating?
The MOSFET is rated for a maximum drain‑source voltage of 250 V.
Which package styles are available for this MOSFET?
It is offered in TO‑220 and TO‑220F packages.
