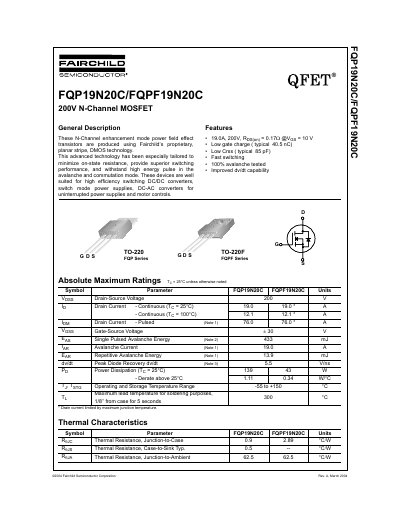

Fairchild Semiconductor FQP19N20C/FQPF19N20C 200V N-Channel MOSFET Datasheet
This document provides comprehensive technical specifications for the Fairchild Semiconductor FQP19N20C and FQPF19N20C devices. These are 200V N-Channel enhancement mode power field effect transistors produced using proprietary DMOS technology, designed to minimize on-state resistance and provide superior switching performance.
Read onlineFairchild FQP19N20 specifications
| Drain-Source Voltage | 200 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 19.0 A |
| Power Dissipation (Tc = 25°C) | 139 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance Junction-to-Case (FQP19N20C) | 0.9 C/W |
| Gate Threshold Voltage (Typical) | 2.0 to 4.0 V |
| Package Type | TO-220 / TO-220F |
Source: Fairchild Semiconductor FQP19N20C/FQPF19N20C 200V N-Channel MOSFET Datasheet
All Fairchild FQP19N20 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum single pulsed avalanche energy?
The device can withstand a single pulsed avalanche energy of 433 mJ.
From: Fairchild Semiconductor FQP19N20C/FQPF19N20C 200V N-Channel MOSFET Datasheet
How does the on-resistance change with temperature?
The on-resistance increases as the junction temperature rises from 25°C to 160°C.
From: Fairchild Semiconductor FQP19N20C/FQPF19N20C 200V N-Channel MOSFET Datasheet
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current at 25°C is 19.4 A.
From: Fairchild Semiconductor FQP19N20 N-Channel MOSFET Datasheet
What is the typical on-state resistance?
The typical on-state resistance is 0.152 Ω at Vgs = 10 V.
From: Fairchild Semiconductor FQP19N20 N-Channel MOSFET Datasheet
