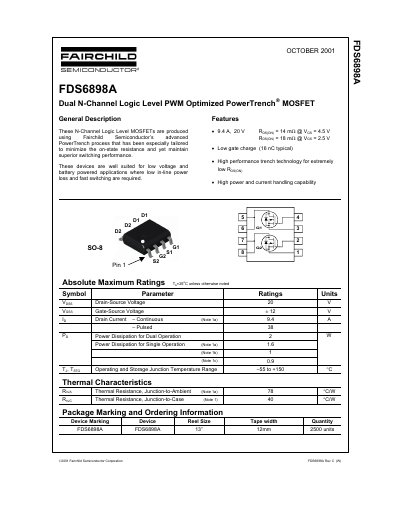

Fairchild FDS6898A Dual N-Channel Logic Level MOSFET Datasheet
This document is a technical datasheet for the Fairchild Semiconductor FDS6898A, a Dual N-Channel Logic Level PWM Optimized PowerTrench MOSFET. The device utilizes advanced PowerTrench process technology to minimize on-state resistance while maintaining superior switching performance.
Key specifications include a drain-source voltage rating of 20V and a continuous drain current of 9.4A for dual operation. The datasheet provides detailed electrical characteristics, thermal data, typical performance curves, and maximum safe operating area information.
Fairchild FDS6898A specifications
| Drain-Source Voltage (V_DSS) | 20 V |
|---|---|
| Gate-Source Voltage (V_GSS) | -12 to +12 V |
| Pulsed Drain Current | 38 A |
| Power Dissipation (Dual Operation) | 2 W |
| Operating Junction Temperature Range | -55 to +150 °C |
Source: Fairchild FDS6898A Dual N-Channel Logic Level MOSFET Datasheet
All Fairchild FDS6898A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current for this MOSFET?
The maximum continuous drain current is 9.4 A.
From: Fairchild FDS6898A Dual N-Channel Logic Level MOSFET Datasheet
What is the maximum drain-source voltage rating?
The maximum drain-source voltage is 20 V.
From: Fairchild FDS6898A Dual N-Channel Logic Level MOSFET Datasheet
What type of MOSFETs are included in this device?
The FDS6898AZ contains dual N-Channel Logic Level PWM Optimized PowerTrench MOSFETs.
What is the maximum continuous drain current rating?
The device supports a continuous drain current of 9.4 A under specified conditions.
