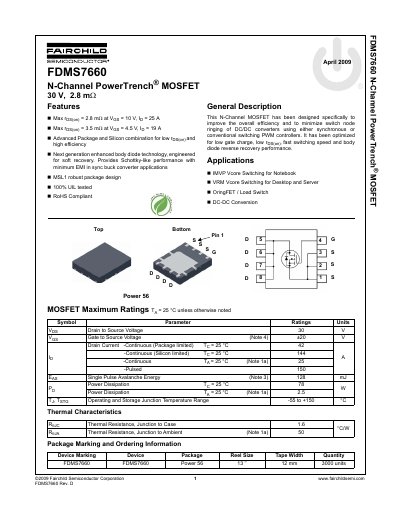

Fairchild Semiconductor FDMS7660 N-Channel PowerTrench MOSFET Datasheet
This document is a datasheet for the Fairchild Semiconductor FDMS7660, an N-Channel PowerTrench MOSFET designed for high efficiency and low gate charge. It is optimized for applications such as VRM Vcore switching in notebooks and desktops, OringFET/load switch configurations, and DC-DC conversion.
Read onlineFairchild FDMS7660 specifications
| Drain to Source Voltage (VDS) | 30 V |
|---|---|
| Continuous Drain Current (Package limited) | 42 A |
| Max rDS(on) at VGS = 10V | 2.4 mΩ |
| Operating Junction Temperature Range | -55 to +150 °C |
| Power Dissipation (TC = 25°C) | 83 W |
Source: Fairchild Semiconductor FDMS7660AS N-Channel PowerTrench SyncFET Datasheet
All Fairchild FDMS7660 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the FDMS7660 RoHS compliant?
Yes, the datasheet states that the device is RoHS Compliant.
From: Fairchild Semiconductor FDMS7660 N-Channel PowerTrench MOSFET Datasheet
What is the maximum junction temperature?
The operating and storage junction temperature range is from -55 to +150 °C.
From: Fairchild Semiconductor FDMS7660 N-Channel PowerTrench MOSFET Datasheet
What are the applications for this device?
It is suitable for synchronous rectifiers in DC/DC converters, notebook Vcore/GPU low side switches, networking point of load low side switches, and telecom secondary side rectification.
From: Fairchild Semiconductor FDMS7660AS N-Channel PowerTrench SyncFET Datasheet
Is this device RoHS compliant?
Yes, the document states that the device is RoHS Compliant.
From: Fairchild Semiconductor FDMS7660AS N-Channel PowerTrench SyncFET Datasheet
