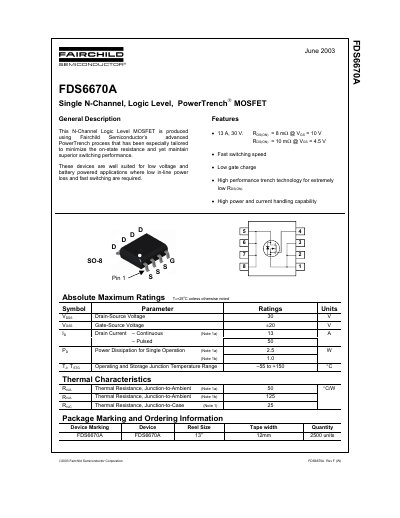

Fairchild FDS6670A Single N-Channel Logic Level PowerTrench MOSFET Datasheet
The document describes the Fairchild Semiconductor FDS6670A, an N-Channel Logic Level MOSFET produced using the advanced PowerTrench process. It is specifically tailored to minimize on-state resistance while maintaining superior switching performance, making it well-suited for low voltage and battery-powered applications requiring low in-line power loss.
Read onlineFairchild FDS6670A specifications
| Drain-Source Voltage | 30 V |
|---|---|
| Gate-Source Voltage | +20 V |
| Pulsed Drain Current | 50 A |
| Operating Junction Temperature Range | -55 to +150 °C |
Source: Fairchild FDS6670A Single N-Channel Logic Level PowerTrench MOSFET Datasheet
All Fairchild FDS6670A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current?
The maximum continuous drain current is 13 A.
From: Fairchild FDS6670A Single N-Channel Logic Level PowerTrench MOSFET Datasheet
Is this device suitable for battery powered applications?
Yes, these devices are well suited for low voltage and battery powered applications.
From: Fairchild FDS6670A Single N-Channel Logic Level PowerTrench MOSFET Datasheet
What is the primary application of this device?
It is designed to replace a single SO-8 MOSFET and Schottky diode in synchronous DC/DC power supplies.
From: Fairchild FDS6670AS N-Channel PowerTrench SyncFET Datasheet
Does this component include an integrated diode?
Yes, it includes an integrated Schottky body diode using Fairchild's monolithic SyncFET technology.
From: Fairchild FDS6670AS N-Channel PowerTrench SyncFET Datasheet
