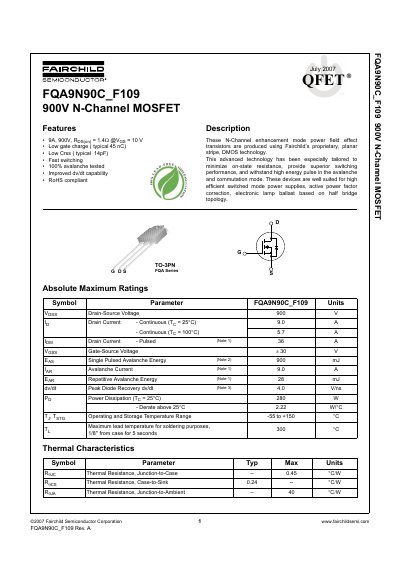

Fairchild FQA9N90C_F109 900V N-Channel MOSFET Datasheet
This document provides design specifications for the Fairchild FQA9N90C_F109, an N-channel enhancement mode power field effect transistor produced using proprietary planar stripe DMOS technology. The device is designed to minimize on-state resistance and provide superior switching performance, making it suitable for high-efficiency switched mode power supplies and active power factor correction applications.
Read onlineFairchild FQA9N90C specifications
| Drain-Source Voltage | 900 V |
|---|---|
| Continuous Drain Current (25°C) | 9.0 A |
| Pulsed Drain Current | 36 A |
| Total Gate Charge | 45 nC typical |
| Gate-Source Voltage Max | +30 V |
| Operating Temperature Range | -55 to +150 °C |
Source: Fairchild FQA9N90C_F109 900V N-Channel MOSFET Datasheet
All Fairchild FQA9N90C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum single pulsed avalanche energy?
The device can withstand a single pulsed avalanche energy of up to 900 mJ.
From: Fairchild FQA9N90C_F109 900V N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage rating?
The MOSFET can withstand up to 900 V between drain and source.
From: Fairchild FQA9N90C_F109 900V N-Channel MOSFET Datasheet
What continuous drain current can it handle at 25 °C?
It is rated for a continuous drain current of 9.0 A at 25 °C.
From: Fairchild FQA9N90C_F109 900V N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage rating?
The MOSFET is rated for a maximum drain‑source voltage of 900 V.
What continuous drain current can it handle at 25 °C?
It can conduct up to 9.0 A continuously at 25 °C.
